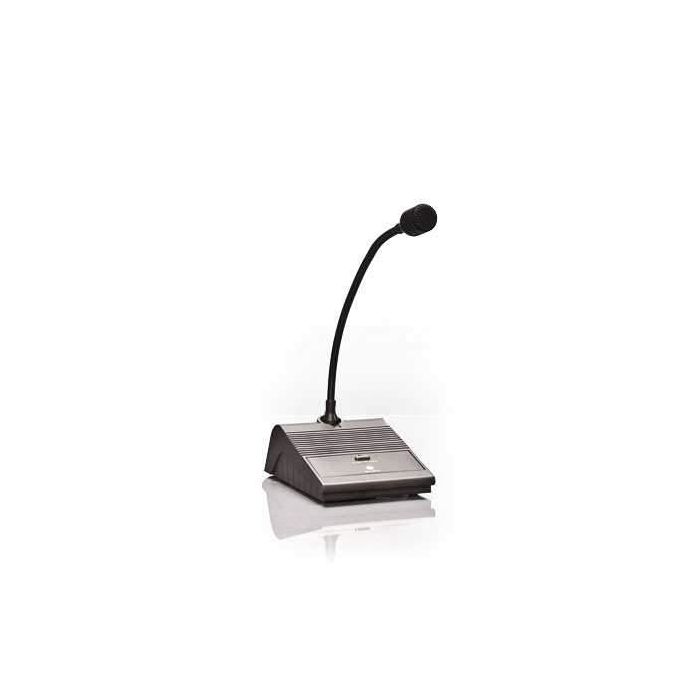

RCF BM 3014

Tischsprechstelle

• Kunststoffgehäuse mit 320mm Schwanenhals
• PTT Taster zur momentanen Mikrofonaktivierung
• Inkl. 5m Anschlusskabel mit XLR und zusätzlichem Adernpaar für Steuerungsbefehle
• Inkl. Windschutz

TECHNISCHE DATEN

TYP DYNAMISCH, NIERE
IMPEDANZ 500 Ohm symmerisch
ÜBERTRAGUNGSBEREICH 100 ÷ 12000 Hz
EMPFINDLICHKEIT - 71 dB ± 3 dB (0 dB=1V/μbar, 1kHz)
ANSCHLÜSSE 3-pol XLR

Unidirectional cardoid-pattern microphone with high sensitivity and extended frequency response.
Factory-fitted for direct connection to the AM4000 series, PR4092, EL2126 CD sintoamplifier and 1000 series amplifiers.

Features

Plastic body with 320 mm gooseneck
Pushbutton for momentary microphone activation
Connections on screw terminals inside

General Specifications

Type: Desktop paging microphone with dinamyc capsule
Directivity: Unidirectional - Cardioid
Frequency Response: 100 Hz ÷ 12 kHz
Microphone Sensitivity: - 71 dB ± 3
Output impedance: 500 Ω
Signal/noise ratio: 40 dB
Connector: 3 pole XLR

Physical Specifications

Height: 270 / 10.62 mm/inch
Width: 200 / 7.87 mm/inch
Depth: 132 / 5.20 mm/inch
Net Weight: 1.6 / 3.53 kg/lbs

Shipping information

Package height: 380 / 14.96 mm/inch
Package width: 240 / 9.44 mm/inch
Package depth: 165 / 6.49 mm/inch
Shipping weight: 2.2 / 4.85 kg/lbs
