RCF BM 2006

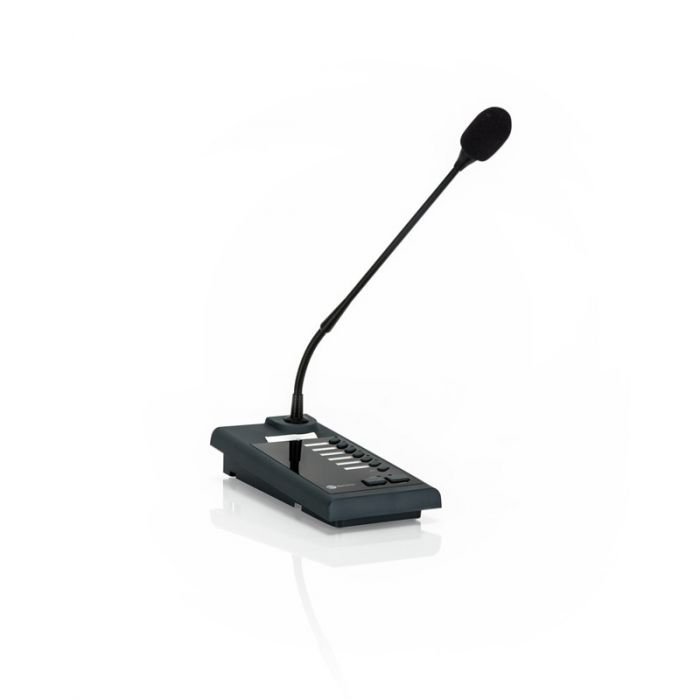

BM 2006 is a 6-zones paging microphones designed for the ZM 2000 system.
Up to six BM 2006 can be daisy-chained to a ZM 2124 / ZM 2100 main unit.
It is possible to link up to four BE 2012 extensions to each console, in order to reach the maximum system capability of 54 zones.

Features
6 zone buttons
‘All Call' button
‘PTT' button (momentary microphone activation for short announcements)
‘Lock' button (as ‘PTT', but operating as a toggle for long announcements)
Flexible gooseneck with an electret microphone capsule
Balanced input / output on RJ 45 ports (CAT 5 cable)
Priority mode setting
SPECIFICATIONS
Operating voltage: 24 V dv Max. current draw: 50 mA (BM 2006 only) 130 mA (with a single BE 2012 keyboard) 210 mA (with two BE 2012 keyboards) 290 mA (with three BE 2012 keyboards) 370 mA (with four BE 2012 keyboards) Max. audio output level: 1 V (RMS) Frequency response: 100 Hz ÷ 15 kHz Speech filter: high-pass, cutoff: 315 Hz, slope: 6 dB / octave Dimensions (w, h, d): 108 mm, 55 mm, 240 mm (BM 2006 only) Net weight: 1 kg (BM 2006 only)
