Mischverstärker mit 4 universellen Mik./Line Eingängen und 2 AUX Line Eingängen

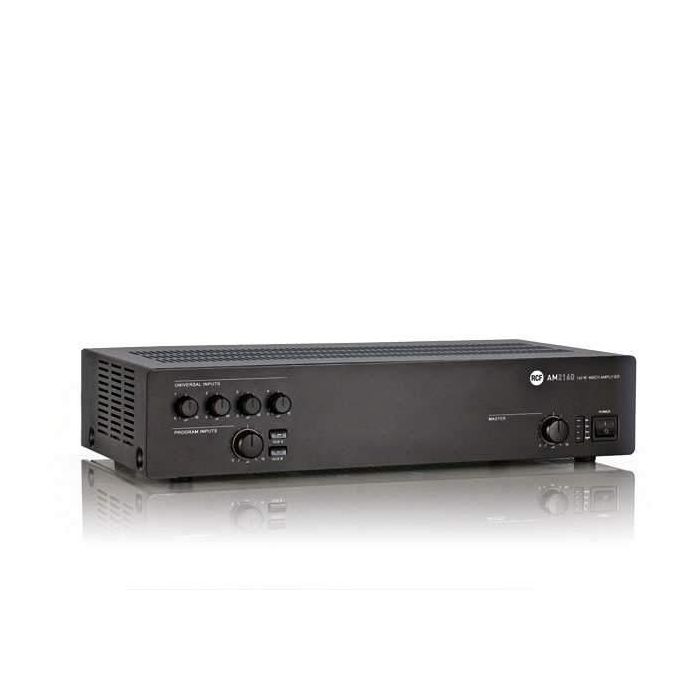

Der AM 2160 ist ein Mischverstärker mit 4 universellen Mik./Line Eingängen und 2 AUX Line Eingängen.
Der interne Verstärker hat eine Leistung von 160 Watt kann an niederohmigen (4 Ohm) oder hochohmigen (70/100V) Lautsprechernetzen betrieben werden.
Features
160 Watt 4+2 Kanal Mischverstärker
Alle Eingänge mit Schraubanschlüssen
Eingang 1 zusätzlich mit XLR, Eingang 2 & 3 mit RJ45 für BM 3001 Systemsprechstelle
Kanal 1 mit VOX Priorität
Kanal 1 – 4 mit schaltbarer Priorität über pot. freien Kontakt
Präsenz Regelung und High-Pass Filter
2 x AUX Eingang mit Bass- und Höhenregler
Music On Hold und PRE Ausgänge
Digitaler Gong- und Sirenengenerator
24V/0.5A Pflichtruf-Relais-Ausgang
Status- Priorität- und Pegel LED
Amplifier Specifications
Power output: 160 W rms
Frequency Response: 50 Hz ÷ 18 kHz
Distortion: < 0.3%
Signal/noise rate: (MIC) > 60 dB; (AUX) > 80 dB
Crosstalk: (MIC) > 60 dB; (AUX) > 80 dB
Phantom Power: 32 V dc
Input Section
Input sensitivity MIC: - 56 dBu
Input sensitivity PHANTOM: - 28 dBu
Input sensitivity LINE: - 7 ÷ + 19 dBu
Input sensitivity AUX: - 4 ÷ + 15 dBu
Input impedance MIC: 10 kΩ
Input impedance PHANTOM: 5 kΩ
Input impedance LINE: 10 kΩ
Input impedance AUX: 20 kΩ
Bass Tone: (80 Hz) ± 8 dB
Treble Tone: (13 kHz) ± 8 dB
Presence control: (2.15 kHz) + 10 dB
High-pass filter: 150 Hz
Output Section
Output Level: – 1 dBu
Output impedance: 600 Ω
Phantom power voltage/current: 32 / 0.018 V/A
Output Loudspeaker Low impedance: 4 Ω
Output Loudspeaker Constant voltage: 100 V ; 70 V
AUX output: Pre ; Music on hold
Protections: Overload, thermal, Short circuit, fuse
Power Requirement
Operating voltage: 220÷240 / 110÷120 ~ 50 / 60 V ˜ Hz
Power (consumption): 240 W
Fuse model: T3.15AL - 250 V ;T6.3AL - 250 V
Physical Specifications
Height: 88 / 3.46 mm/inch
Width: 442 / 17.40 mm/inch
Depth: 230 / 9.05 mm/inch
Net weight: 4 / 8.81 kg/lbs
Shipping Information
Package height: 200 / 7.87 mm/inch
Package width: 500 / 19.68 mm/inch
Package depth: 330 / 12.99 mm/inch
Shipping weight: 4.5 / 9.92 kg/lbs
REAR SIDE
The AM 2160 mixer amplifier counts a total of 6 inputs, 4 of which universal and 2 dedicated to program sources.
UNIVERSAL AUDIO INPUTS
It is equipped with several type of input connectors: XLR connector for the Input 1, RJ 45 connectors for the Inputs 2 and 3, expressly for BM 3001 paging microphones and then removable screw terminal connectors for each of the universal audio inputs.
AUX INPUTS & OUTPUTS
The AM 2160 mixer amplifier has 2 Aux Inputs on dual RCA connector with independent gain controls and overall Treble and Bass controls.
The PRE OUT audio output on RCA connector permits to source the same signal routed to the internal power amplifier circuit. It can be used also to link additional external power amplifiers.
The MUSIC ON HOLD audio output with RCA connector makes available a mono signal of the program source connected to the AUX INPUT A. The MUSIC ON HOLD output is supposed to be mainly used for the connection to a PABX system in order to activate the ‘music on hold’ function.
SETTING PARAMETERS
The AM 2160 mixer amplifier has 8 DIP switches to set the Priority Configuration, the VOX function, the BM 3001 smart-PTT circuit activation, and the chime sound.
An auxiliary relay dry contact is triggered when a priority command has been activated so to for instance drive attenuators priority relays.
AMPLIFIER OUTPUTS
The amplifier output is available either for low impedance loudspeakers (min. 4 Ω) or 100 – 70 V constant voltage speaker lines. The Output connection supported by removable screw terminals are protected by a security cover.
INTERNAL VIEW
The model of each AM 2000 series mixer amplifier includes the information of the built-in power device: for instance AM 2160 makes you available 160W RMS @ 100V, 70V or 4 Ohms.
On the market you can find other Mixer Amplifiers for Commercial Audio applications, but none light and compact as the AM 2160.
THE POWER SUPPLY & AMPLIFIER ASSEMBLY
The Power Supply and Power Amplifier are designed as single high efficiency module, compact and reliable. For instance, the energy efficiency is in this series close to the 80% compared with traditional products where the 45% is sometimes hard to be reached.
When you hold it in your hand, you can feel the technology we developed for this range of commercial audio amplifiers. Already several thousand pieces have been used world-wide so far in many different applications/projects.
THE PRE-AMPLIFIER CIRCUIT
The Pre-Amplifier board, expressly designed for the perfect integration with the power module assembly includes several facilities like direct link with BM 3001 dedicated paging microphone, it permits to wire the console even 100s meters far from the mixer amplifier by using simple CAT5 FTP cable.
Furthermore the preamplifier board is equipped with a microprocessor which monitors the status of the power supply and power amplifier circuits, manages different priorities configurations among the inputs and generate the chime-tone, optionally accessible from each input. Thanks to its incredible high-quality audio circuit, the AM 2000 Series mixer amplifiers it is an innovative amplifier family with technological breakthroughs.
THE CABLING
Finally internal wiring of the 2000 Series amplifiers and the mechanical solutions developed show the flexibility of the whole project which involves 10 other public address Amplifiers based on same technology but different in power and features/facilities.
2000 Series is a project carried-out by a team of 10 engineers at RCF headquarters for over two years and it represents the latest technology solution for the EASY LINE SOLUTIONS Commercial Audio Public Address systems.
