RCF AC AD 2405

Features

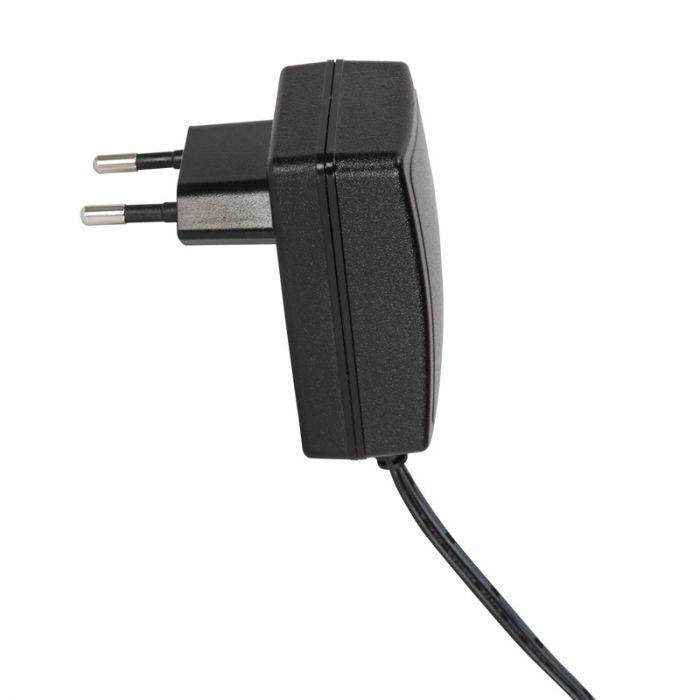

AC/DC Adapter designed to use with microphone console
Output Voltage 24 V
AC plug EU Type
1.5 m connecting cable with DC Barrel Jack (a=5.5 ;b=2.1; c=11 mm )
Standard output cable UL2468
Safety Standard IEC/UL/EN 60950-1,CE, CB
EMC Standard (EN55022, CISPR22, FCC Part 15) Class B EN61000-3-2, 3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024

POWER REQUIREMENT
Max-current: 500 mA
Operating voltage: 100÷240 ~ 50 / 60 V ˜ Hz
Operating DC voltage: 24 V
Protections: Overload, Over voltage, Short circuit
Operating temperature range: 10 ÷ +50 ° C
Operating humidity: 20 ÷ +90 % RH non-condensing

PHISICAL SPECIFICATION
Height: 71 / 2.79 mm/inch
Width: 40 / 1.57 mm/inch
Depth: 30 / 1.18 mm/inch
Net Weight: 0.1 / 0.22 Kg/Lbs

SHIPPING INFORMATION
Package height: 140/5.51 mm/inch
Package width: 78/3.07 mm/inch
Package depth: 70/2.75 mm/inch
Shipping Weight: 0.2 / 0.44 Kg/Lbs
