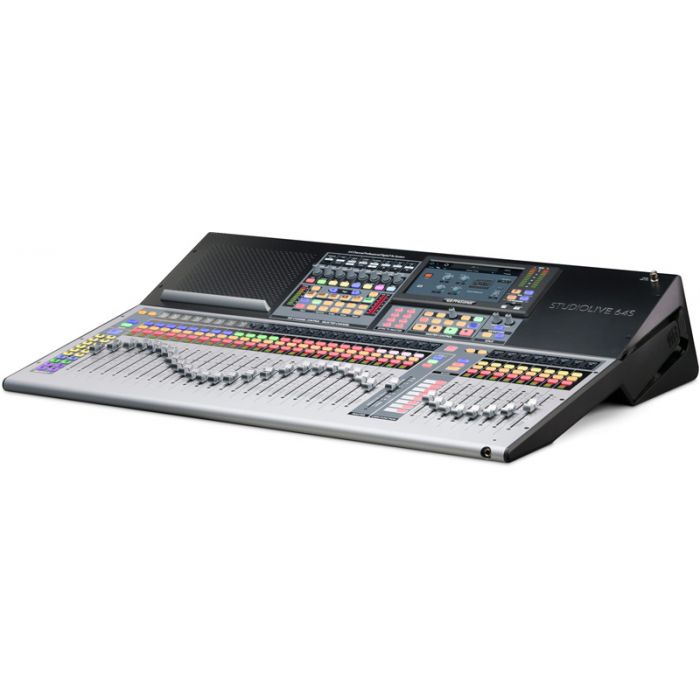

PRESONUS StudioLive 64S

Powered by the new quad-core PreSonus FLEX DSP Engine to provide the most processing of any digital mixer in its class
76 input-channel digital mixer with 33 touch-sensitive motorized faders
64 channels (individually sourced from any of the 32 local digitally controlled XMAX mic/line inputs or any AVB, USB, or SD input)
2 balanced stereo aux inputs
1 stereo tape input (RCA, Bluetooth, USB, AVB or SD)
8 FLEX FX returns
1 Talkback
43 mix buses
32 FlexMixes (Aux, Subgroup, Matrix)
8 dedicated FLEX FX buses
Stereo Main bus
Main Mono/Center bus with per-channel level send and Center Divergence
526 simultaneous processors
HPF
Gate / Expander
Compressor with Fat Channel plug-in models
4-band/6-band parametric EQ with Fat Channel plug-in models
Limiter
31-band Graphic EQ
8 FLEX FX slots featuring legendary classic reverb emulations and delays
State Space-Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
FLEX FX multi-effects processor with 8 slots to load legendary reverb emulations and delays with 8 dedicated effects buses
24 DCAs to control groups of channels
128-channel (64x64) recording over USB
Onboard multi-channel SD recorder (34x34) with true Virtual Soundcheck mode
AVB Networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers and more
User Profiles for managing multiple operators with custom permissions
Per channel digital patching from any analog, AVB, USB, or SD Card source
DAW Control
Advanced Studio One control integration
MCU emulation mode optimized for Logic
HUI emulation mode optimized for Pro Tools
Remote control every mix function from your computer, iPad, or Android tablet with UC Surface (included)
Put your musicians’ monitor mix under their fingers with QMix-UC (included) for iOS or Android
Capture multitrack software included
Automated Virtual Soundcheck
Store StudioLive mix scenes with your audio
Advanced Studio One integration (Studio One Artist Included)
XMAX mic preamp control from Studio One
Control Fat Channel parameters from Studio One mixing console



Specs:

Computer system requirements:

Below are the minimum computer-system requirements for UC Surface, QMix-UC, and Studio One®.
Mac

macOS® 10.11 or higher (64-bit only)
Intel® Core™ 2 Duo processor (Intel Core i3 or faster recommended)
4 GB RAM (8 GB or more recommended)

Windows

Windows® 7 x64 SP1 + platform update, Windows 8.1 x64, Windows 10 x64
Intel Core 2 Duo (Intel Core i3 or faster recommended)
4 GB RAM (8 GB or more recommended)

Mac and Windows Systems

USB 2.0 port
Internet connection
Internal or external 7200 RPM storage drive highly recommended
30 GB hard disk space
Monitor with 1366x768 resolution

iOS

iOS 10 or later
iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation)

Android

Android™ 5.0 (Lollipop) or later
Android smartphone (QMix-UC)
Android tablet (8-inch) with 1024x768 resolution (UC Surface)



Technical Specifications
Mi crophone Preamplifier


Input Type


XLR Female, balanced

Frequency Response to Main Output (at unity gain)


20-20 kHz, ±0.5 dBu

Input Impedance


1 kΩ

THD to Main Output


<0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd

S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd)


94 dB

Common Mode Rejection Ratio (1 kHz at unity gain)


65 dB

Gain Control Range (±1 dB)


0 dB to +60 dB

Maximum Input Level (unity gain)


+12 dBu

Phantom Power (±2 VDC)


48 VDC, switchable per channel
Line Inputs


Type


¼” TRS Female, balanced

Frequency Response to Main Output (at unity gain)


20-20 kHz, ±0.5 dBu

Input Impedance


10 kΩ

THD to Main Output


<0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd

S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd)


94 dB

Maximum Input Level


+18 dBu
Tape Inputs


Type


RCA Female, unbalanced (stereo pair)

Maximum Input Level


+12 dBu, ±0.5 dBu
XLR Outputs


Type


XLR Male, balanced

Maximum Output Level


+24 dBu, ±0.5 dBu

Output Impedance


100Ω
Line Outputs


Type


¼” TRS Female, balanced

Maximum Output Level


+18 dBu, ±0.5 dBu

Output Impedance


100Ω
Tape Outputs


Type


RCA Female, unbalanced (stereo pair)

Maximum Output Level


+18 dBu, ±0.5 dBu

Output Impedance


100Ω
Headphone Output


Type


¼” TRS Female, active stereo

Maximum Output


100 mW/ch. @ 60Ω load

Frequency Response


20 Hz – 20 kHz (± 0.5 dB)

THD+N


0.01%, 1 kHz, max gain, 20 Hz BW, unwtd

S/N Ratio


96 dB, 1 kHz, max gain, 20 Hz BW, unwtd
System Crosstalk


Input to Output


-90 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)

Adjacent Channels


-87 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)
Digital Audio and Control


ADC Dynamic Range


115 dB (A-wtd, 48 kHz)

DAC Dynamic Range


115 dB (A-wtd, 48 kHz)

USB Recording Port


USB 2.0, Type-B

Bluetooth™ Input


4.1, stereo

AES/EBU Output


XLR Male

Network Control Port


RJ-45

AVB Audio Network Port


Locking XLR Ethernet

Internal Processing


32-bit, floating point

Sampling Rate


48 kHz, 44.1 kHz

A/D/A Bit Depth


24

Reference Level for 0 dBFS


+18 dBu

Total System Latency


1.9 ms (local routing, analog in-analog out, all processing active)
Clock


Jitter


<20 ps RMS (20 Hz - 20 kHz)

Jitter Attenuation


>60 dB (1 ns in, 1 ps out)
Power / Environmental


Connector


IEC

Input-Voltage Range


90 to 230 VAC (±10%)

Power Requirements (continuous)


85W

Recommended Ambient Operating Temperature


0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit
Physical
