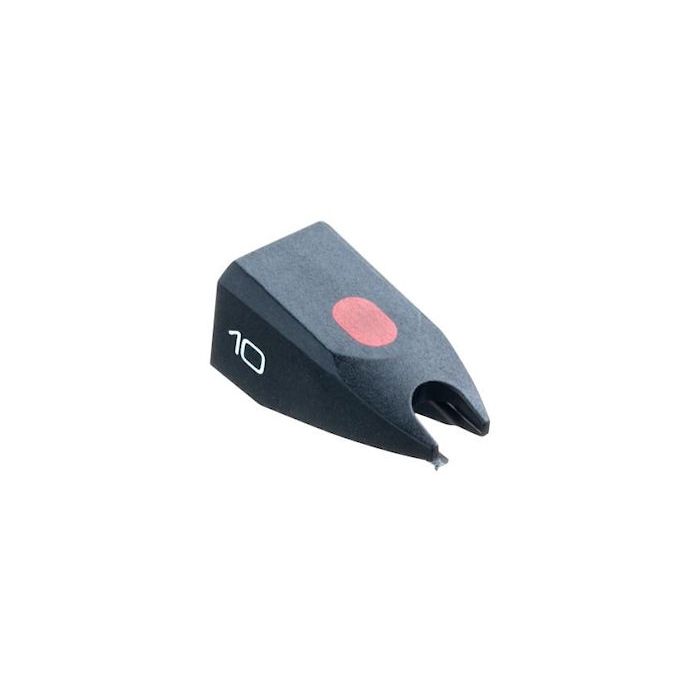

Ortofon Nadel 10

Technical data
Frequency range 20-24.000 Hz
Frequency response 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force *) 70 µm
Compliance, dynamic, lateral 25 µm/mN
Stylus type Elliptical
Stylus tip radius r/R 8/18 µm
Equivalent stylus tip mass 0,5 mg
Tracking force range 1,25-1,75 g (12,5-17,5 mN)
Tracking force, recommended 1,5 g (15 mN)
Tracking angle 20°
Stylus colour Black
Recommended for following cartridges

Super OM 10, OM 10, OMP 10, OMB 10, OMT 10, LM 10, Concorde 10, Concorde EC 10, TM 10H, LMB 12, SMB 12, LMA 12

*) Typical value
