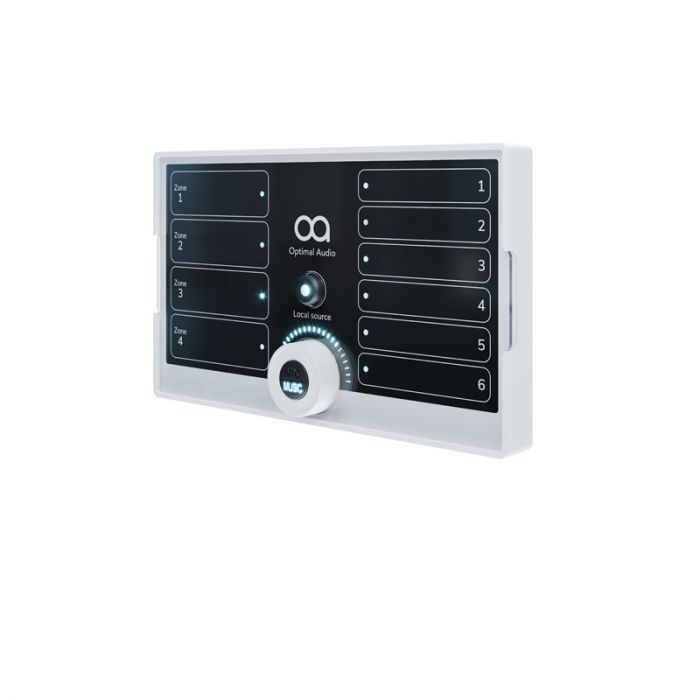

Optimal Audio Zone Pad 4

ZonePad 4 is a wall mounted controller, providing users clear and simple access to the essential controls of four zones of an Optimal Audio system.

It enables selection and volume control of playback source and microphones to be easily controlled across 4 zones of audio from one position.

ZonePad 4 features a clean, slick intuitive touch interface.

TYPE 4 zone wall controller
MAXIMUM DISTANCE (CAT5) 500m
CONNECTION RJ 45
DATA PROTOCOL Optimal Audio proprietary over CAT 5
CASE MATERIAL Zinc plated steel, ABS
LENS MATERIAL Clear acrylic
BACK BOX 2-gang 25mm deep back box
DIMENSIONS (W) 146mm x (H) 86.2mm x (D) 39.3mm
(W) 5.75” x (H) 3.39” x (D) 1.55”
WEIGHT 0.35kg (0.8lbs)
