Optimal Audio Zone Pad 1

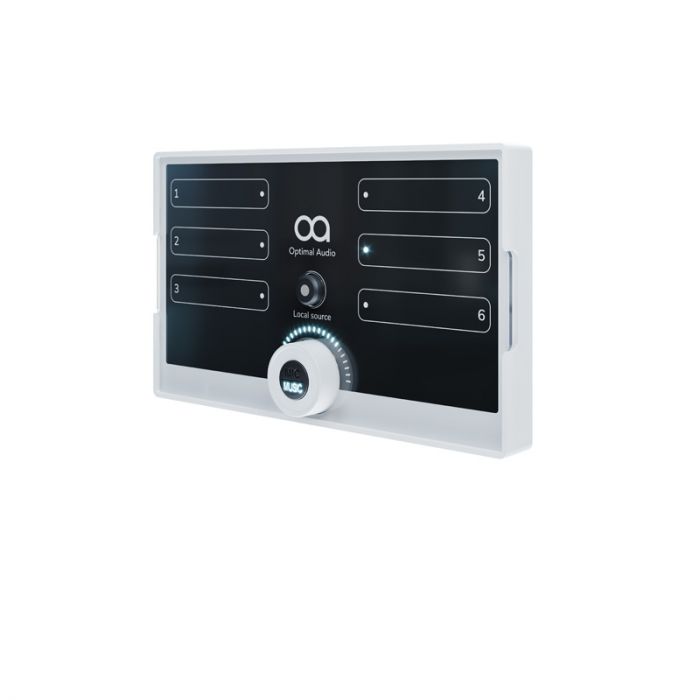

ZonePad 1 is a wall mounted controller, providing users clear and simple access to the essential controls of one zone of an Optimal Audio system.

It enables selection and volume control of playback source and a local microphone and mono line input.

ZonePad 1 gives all users the confidence and access they need to operate an Optimal Audio system.

ZonePad 1 features a clean, slick intuitive touch interface.

TYPE Single zone wall controller with local mic and line inputs
LOCAL MIC INPUT 1 with 48V phantom power, +12dB to +55dB gain, fixed hi-pass filter @160Hz
LOCAL MUSIC INPUT 1 x mono
MAXIMUM DISTANCE (CAT5) 500m
CONNECTION RJ 45
DATA PROTOCOL Optimal Audio proprietary over CAT 5
CASE MATERIAL Zinc plated steel, ABS
LENS MATERIAL Clear acrylic
BACK BOX 2-gang 25mm deep back box
DIMENSIONS (W) 146mm x (H) 86.2mm x (D) 39.3mm
(W) 5.75” x (H) 3.39” x (D) 1.55”
WEIGHT 0.35kg (0.8lbs)
