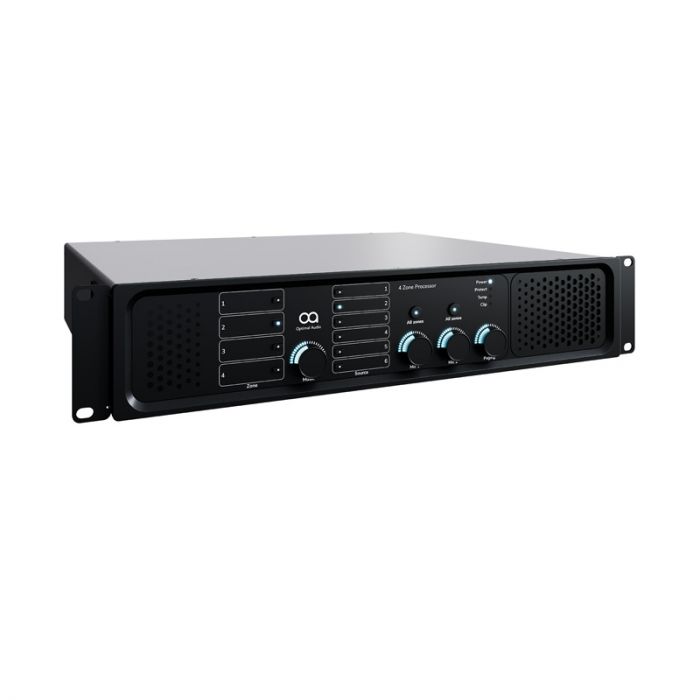

Optimal Audio Zone 4

Flexibility and ease of use are core values of Optimal Audio and the Zone series has been created to give easy access to everyday controls.

Zone 4 allows the user to independently allocate sources across four configurable zones, which could be anything from the bar, back of house or lobby to restaurant, kitchen or shop floor.

Zone 4 is the heart of any sound system, handling audio signal management for four zones. Each zone can be configured to do precisely what is required using the intuitive WebApp. It features 4 line and 2 mic inputs plus 2 HDMI inputs for TV and video sound.

Zone 4 has been designed to work seamlessly with other products in the Optimal Audio range and when coupled with our ZonePads and SmartAmp series provides a simple, intuitive and cost-effective audio system with superb sound quality.

TYPE 4 zone audio processor with DSP and loudspeaker presets
MIC INPUTS 2 with 48V phantom power, +12dB to +55dB gain
MIC INPUT PROCESSING Fixed hi-pass filter @160Hz; sweepable mid-band 200Hz-5kHz, +/-12dB; HF shelf @12kHz
LINE INPUTS 4 stereo with +26dB gain trim. SPDIF option on input 1
HDMI INPUTS 2 with ARC
LINE OUTPUTS 4
ZONEPAD SOCKETS 4
PAGING INPUTS (CAT 5) 2
LAN ETHERNET100Mbps Yes
ALARM OVERRIDE Yes
DIMENSIONS

(W) 480mm x (H) 88mm x (D) 400mm

(W) 18.90” x (H) 3.46” x (D) 15.75”
WEIGHT 9.2kg (20.2lbs)
