Optimal Audio UP4O-W

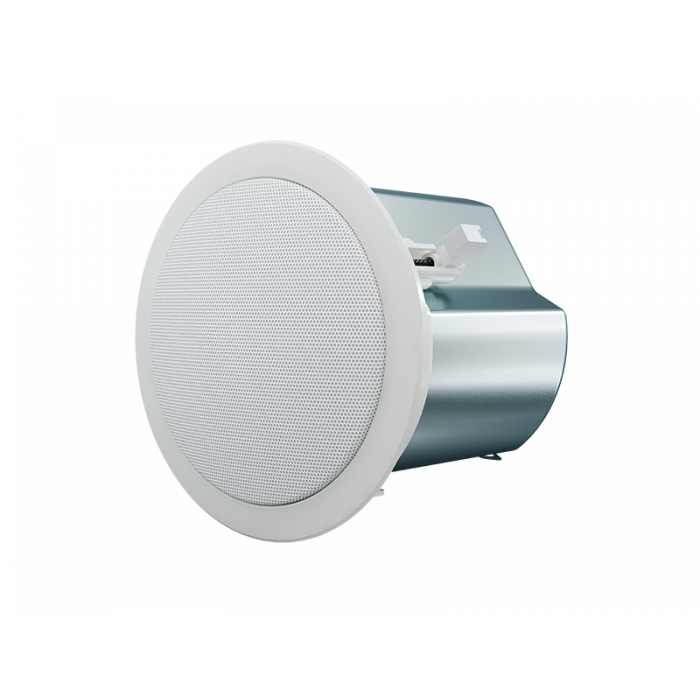

Up 4O is a discreet 4” ceiling speaker delivering consistent coverage and crisp, clear sound to a wide range of cost conscious, commercial environments from hotels and concourses to retail outlets, bars and restaurants.

Up 4O is supplied without a back can for ceilings with a minimum cavity depth, while an integral fixing system is included to achieve a simple and clean installation. The steel perforated grille is finished in neutral white.

Up 4O features a 4” (105mm) driver which is ideal for both music and speech reproduction. A 130° conical coverage pattern ensures the system is delivering sound where it needs to go.

Each Up 4O has been specifically designed to run on 70 or 100 volt line systems via a series of transformer taps.

SmartAmps or Zone will provide optimal performance and loudspeaker protection. When coupled with the Zone series, a ZonePad and the WebApp makes setting up a system and end user control simple and intuitive.

TYPE Full range, passive, ceiling speaker
FREQUENCY RESPONSE (with preset) 87Hz – 15kHz ± 3dB
-10dB @ 60Hz
DRIVERS 4” (105mm), Coated paper
RATED POWER (AES) 10W
NOMINAL IMPEDANCE Tap Dependent
SENSITIVITY (1W/1m) 93dB
MAXIMUM SPL 100dB (cont)
RECOMMENDED HIGH-PASS FILTER 24dB/Octave @ 80Hz
TRANSFORMER TAPS @ 70V 6, 3, 1.5, 0.75W
TRANSFORMER TAPS @ 100V 6, 3, 1.5W
DISPERSION (-6dB) 130˚ conical
BAFFLE ABS
PROTECTIVE GRILLE Perforated steel with cloth backing
CONNECTORS Bare wires
FITTINGS C-ring support backing plate
DIMENSIONS (inc. Grille)

(Ø) 202mm x (D ) 117mm

(Ø) 7.95” x (D ) 4.62”

CUT-OUT DIAMETER


178mm (7.01”)
WEIGHT 1.3kg (2.9lbs)
