Optimal Audio UP3-W

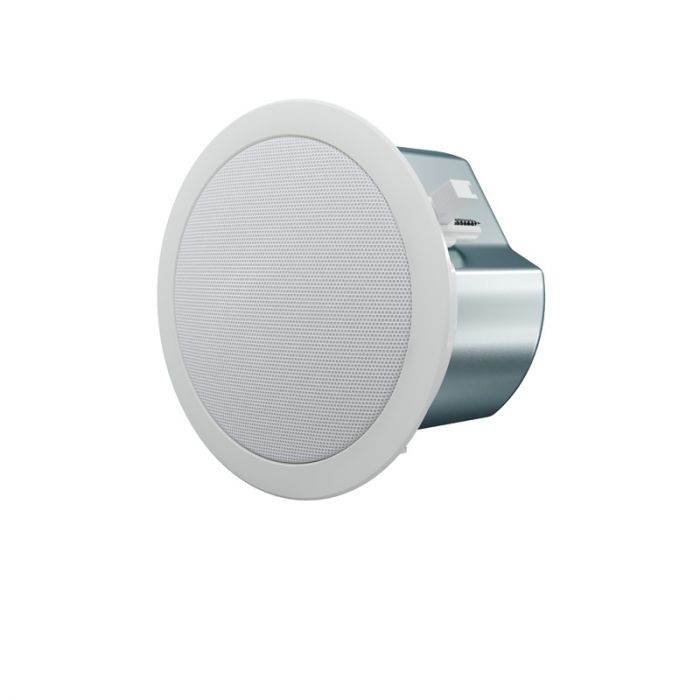

Up 3 is a discreet, passive, 3” ceiling speaker delivering consistent coverage and crisp, clear sound to a wide range of cost conscious, commercial environments from hotels and concourses to retail outlets, bars and restaurants.

An integral fixing system is included to achieve a simple and clean installation. Up 3 has a perforated steel grille and is finished in neutral white.

It features a 3” (78mm) driver which is ideal for both background music and speech reproduction. A conical 130° coverage pattern delivers consistent sound where it needs to go.

Each Up 3 can be run on a series of 70 or 100 Volt taps or at low impedance. Tap selection is via a rotary switch behind the removable grille.

SmartAmps or Zone will provide optimal performance and loudspeaker protection. When coupled with the Zone series, a ZonePad and the WebApp makes setting up a system and end user control simple and intuitive.

TYPE Full range, passive, ceiling speaker
FREQUENCY RESPONSE (with preset) 95Hz – 15kHz ± 3dB
-10dB @68Hz
DRIVERS 3” (78mm), Coated paper
RATED POWER 20W (AES) 40W (Peak)
NOMINAL IMPEDANCE 8Ω
SENSITIVITY (1W/1m) 84dB
MAXIMUM SPL 97dB (cont), 100dB (peak)
RECOMMENDED HIGH-PASS FILTER 24dB/octave @ 90Hz
TRANSFORMER TAPS @ 70V 15, 7.5, 3.8, 1.9W
TRANSFORMER TAPS @ 100V 15, 7.5, 3.8W
DISPERSION (-6dB) 130˚ conical
BACK CAN Zinc-plated Steel
BAFFLE ABS
PROTECTIVE GRILLE Perforated steel with cloth backing
FIRE RATING UL94-V0
CONNECTORS 4 Pin Euroblock with link out
FITTINGS C-ring support backing plate
DIMENSIONS

(Ø) 202mm x (D ) 165mm

(Ø) 7.95” x (D ) 5.7”
CUT-OUT DIAMETER 178mm (7.01”)
WEIGHT 1.6kg (3.5lbs)
