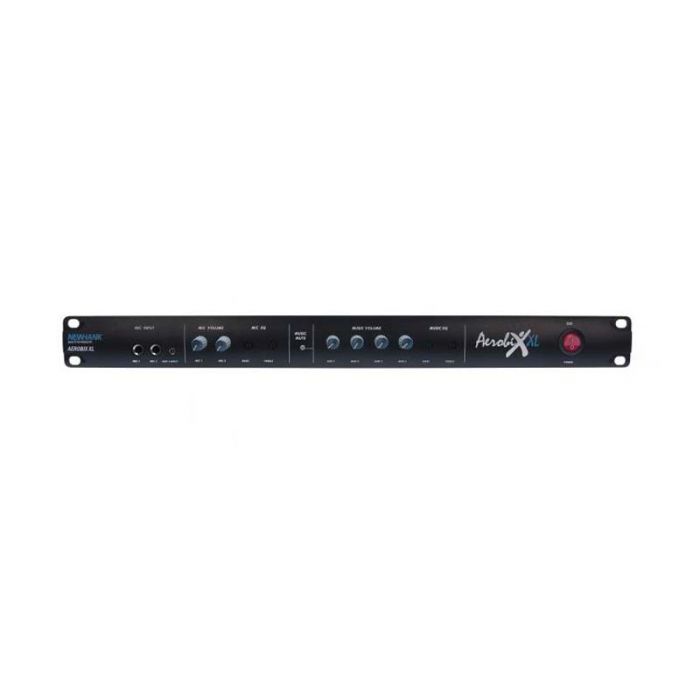

NewHank Aerobix XL

The Aerobix XL is a professional and easy to operate 1U rack mixer with 4 stereo line and 2 symetrical microphone inputs, that can be induvidually set to accept line levels and/or can both work as a 1 stereo symetrical line input.

Key Features:

■Compact 1u low noise audio design
■2 Mic inputs both on 6,3 mm Jack and XLR connectors
■2 Mic inputs can be individually switched to line level and can act together as 1 stereo input
■3 stereo RCA Line inputs
■1 stereo 3.5mm Jack input on the front panel
■Adjustable “Auto Talk Over”
■Individual volume controls
■Bass and treble controls can be adjusted with a screwdriver
■“Music Mute” switch
■Stereo master output both on RCA and balanced XLR
■Min/Max output level can be set on the rear panel


Specifications:

Line 10Kohm, Mic input impedance
Mic 600 0hm input impedance
S/N Ratio: 106 dB
Total Harmonic Distortion: <0.02% (IKHZ)
Frequency response 20Hz-20KHZ
Power Consumption 110-120v / 200-240v AC, 10W

Dimensions:
Face Panel 483x44.4mm
Rear Panel 433x44.4mm
Casing Depth 150mm (excluding connectors)
Weight: 4KG
