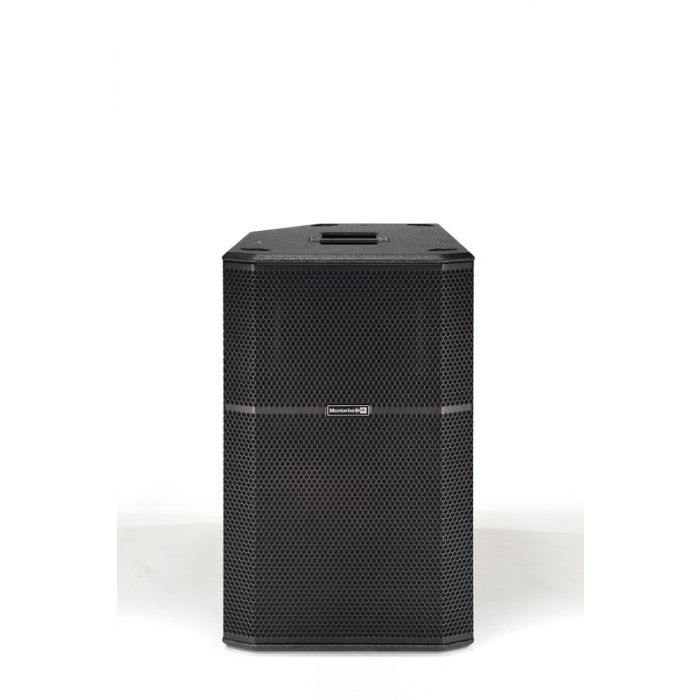

Montarbo R115



The series is comprised of 4 wooden cabinets from 8 inches up to 15 inches, plus a single 15 and a single 18 active subwoofers. The full range cabinets allows for an impressive sound pressure as well as a clear, faithful reproduction of the vocal range. In facts, the sound processing takes advantage of FIR filters, resulting in a linear phase response and a very clear sound performance.

4 preset EQs, easily selectable on board, make prevision for maximum versatility in different applications, comprising wedge use. R series full-range speakers feature 2 Input channels with independent level controls, 1 mic/line combo input and an additional combo line in. A switch on the output channel allows users to select a link output signal or a mix between the 2 input channels.

The wooden enclosure of R series features a black elegant finish and a very clean design with aluminium handles which are flush with side panels, contributing to a very professional overall appearance.

System Type 2-way bass reflex speaker
Max SPL (@1m) 132 dB
Frequency Response (-10 dB) 48 Hz - 20 kHz
HF 1.75" driver
LF 15” - 3” V.C
Dispersion (HxV) 90° x 40°
Crossover Frequency 1450 Hz
Peak Power 1200 W
Cooling Passive radiator
DSP 28/56 bit
Advanced Functions FIR Filters
Connectors I/O CH1: Combo, CH2: XLR-F + 6.35 mm jack (1/4”), LINE OUT: XLR-M
Controls Channel level, MAIN level, PRESET, Channel 1 sensitivity, LINK/MIX output
Cabinet Multilayer wood with polyurea finish
Dimensions (W x H x D) 427 x 705 x 428 mm (16.8" x 27.8" x 16.9")
Weight 25.9 Kg (57 lbs)

Mehr Informationen
Marke Montarbo
