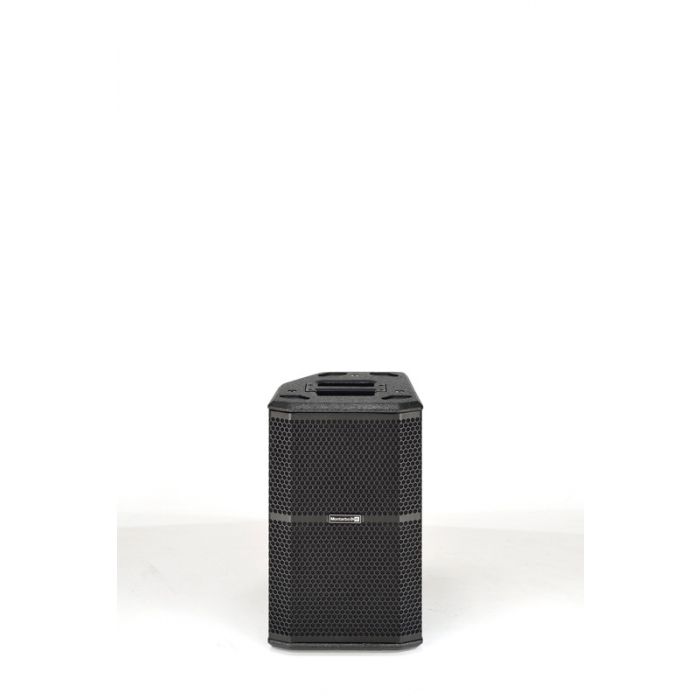

Montarbo R108

The series is comprised of 4 wooden cabinets from 8 inches up to 15 inches, plus a single 15 and a single 18 active subwoofers. The full range cabinets allows for an impressive sound pressure as well as a clear, faithful reproduction of the vocal range. In facts, the sound processing takes advantage of FIR filters, resulting in a linear phase response and a very clear sound performance.

4 preset EQs, easily selectable on board, make prevision for maximum versatility in different applications, comprising wedge use. R series full-range speakers feature 2 Input channels with independent level controls, 1 mic/line combo input and an additional combo line in. A switch on the output channel allows users to select a link output signal or a mix between the 2 input channels.

The wooden enclosure of R series features a black elegant finish and a very clean design with aluminium handles which are flush with side panels, contributing to a very professional overall appearance.

System Type 2-way bass reflex speaker
Max SPL (@1m) 125 dB
Frequency Response (-10 dB) 63 Hz - 20 kHz
HF 1.35" driver
LF 8” - 2” V.C
Dispersion (HxV) 90° x 70°
Crossover Frequency 1800 Hz
Peak Power 400 W
Cooling Fan
DSP 28/56 bit
Advanced Functions FIR Filters
Connectors I/O CH1: Combo, CH2: XLR-F + 6.35 mm jack (1/4”), LINE OUT: XLR-M
Controls Channel level, MAIN level, PRESET, Channel 1 sensitivity, LINK/MIX output
Cabinet Multilayer wood with polyurea finish
Dimensions (W x H x D) 264 x 440 x 260 mm (10.4" x 17.3" x 10.3")
Weight 10.9 kg (24 lbs)
