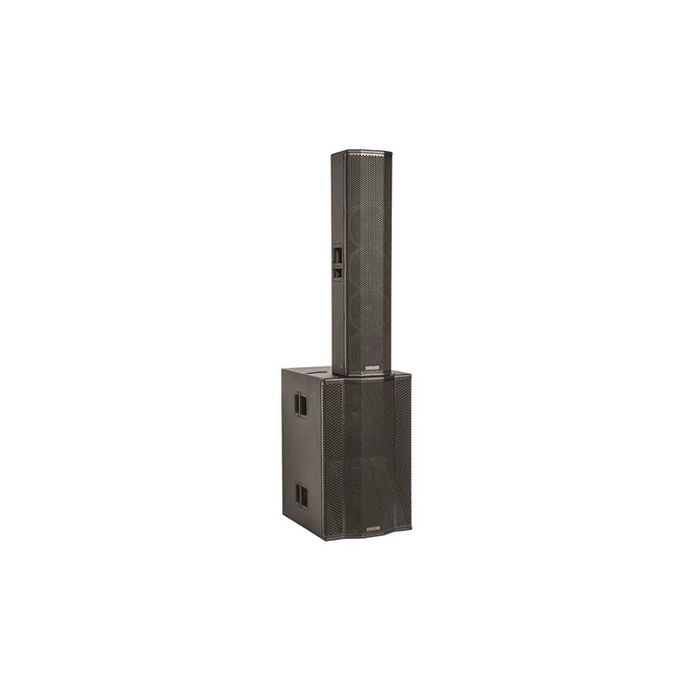

Montarbo NETTUNO 20

Acoustical Data
Speaker Type Active Column System
Frequency Response [-10 dB] 74 Hz - 20 kHz [top]
38.5 Hz - Xover [sub]
Max SPL 137 dB
HF 1.4” exit - 3” V.C.
LF Top 4x 8” - 2” V.C.
LF Subwoofer 2x15” - 3” V.C.
Dispersion 90° H x 40° V
Crossover Frequency 1200 Hz [TOP]
90/100 Hz [SUB]
Amplifier
RMS Power 1600 W
Peak power 3200 W
Cooling Passive Convection
DSP
DSP 32 Bit
AD/DA Converter 24 bit, 48 kHz
Limiter Dual Active Peak, RMS, Thermal
Controls Rotary encoder (subwoofer level)
4 System LED
3 RDNet LED
Presets Flat – user/service
Connectors XLR (input) XLR Link OUT, speakON® (Output to top)
RDNet Data In / Data Out (etherCON® connectors)
Enclosure
Suspension points 2x M10 [TOP]
Pole Mounting 36 mm [TOP]
Handles Built in (1 per side) [TOP]
Built in (2 per side) [SUB]
Dimensions 260x1150x360 mm [TOP]
520x850x650 mm [SUB]
Weight 28.5 Kg [TOP]
52.64 Kg [SUB]
Cabinet Plywood with black coating
