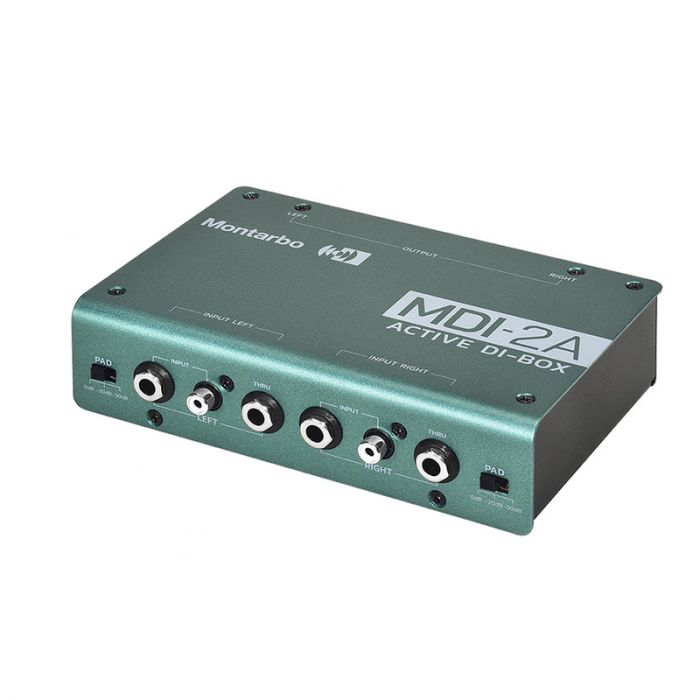

Montarbo MDI-2A

The Direct Box MDI 2 is available as active MDI 2 A ( powered by 9V battery) and passive MDI 2 P, ready to optimize the signal management of high impedance instruments such as keyboards, guitars and electric basses. A crucial partner in the studio and on stage, each MDI 2 device is equipped with TRS or RCA L/R unbalanced Inputs, XLR balanced L/R OUT, as well as an attenuation selector [0 dB -20 dB -30 dB] for both left and right channel input signal.

It is also possible to take repetitions of the input signals through the convenient THRU connectors on the front panel, while the Ground button eliminates possible hums on both output signals.

Type Active DI-BOX
Channels 2
Input connectors 6.3 mm jack, RCA
Max Input level +1 3dBu/+4 dBu
Input Impendance 180kΩ @PAD= 0 dB
Output Connectors XLR
Frequency Response 20 Hz-20 kHz
Total harmonic distorsion <0.002%@1 kHz
Indicators Battery
Controls ground lift, Battery
Operating Voltage 9V block
Dimensions 172 mm x 42.5 mm x 112 mm
Weight 752 g
