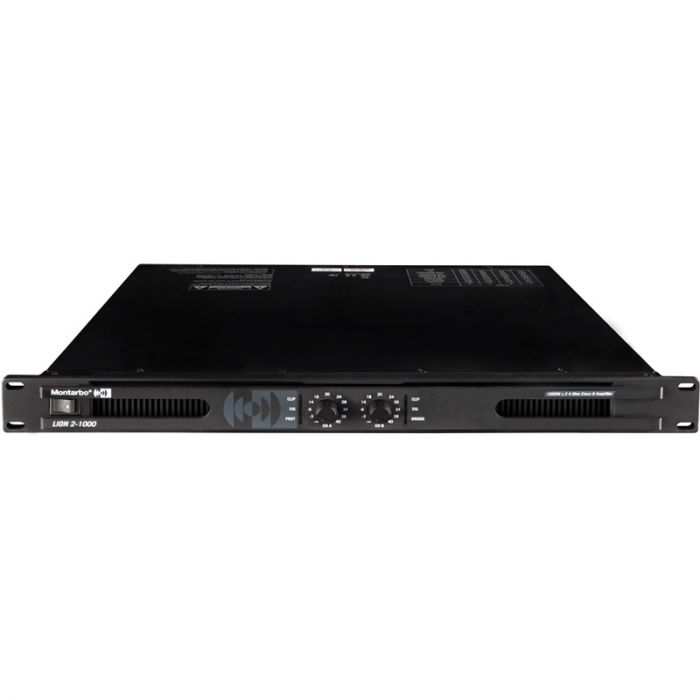

Montarbo LION 2-1000
LION 2-1000 DIGITAL AMPLIFIER 1U 2x600W @ 8OHM
The LION 2-1000 switching power professional amplifier is designed for professional use on stage. The high-quality components and the carefully designed circuits ensure excellent audio performance and an extremely linear frequency response. In fact, the switching technology offers, together with an increased efficiency and a better control of heat dissipation than conventional power supply systems, a drastic reduction of dimensions and weight, for easier transportation and installation.
This Amplifier guarantees total reliability and a trouble-free use even in the most demanding conditions.
We believe the LION 2-1000 switching power professional amplifier will provide a perfect performance, what you get is unprecedented performance at an incredibly attractive price.
Power RMS @ 4 Ohms 2 x 900 watt
Power RMS @ 8 Ohms 2 x 600 watt
Power EIAJ @ 2 Ohms 2 x 2000 watt
Power Bridged RMS @ 8 Ohms 1800 watt
Power Bridged EIAJ @ 4 Ohms 4000 watt
Frequency Response 20 Hz - 20 kHz @ 8O (+/-1dB)
THD+N (THD%) <0.1%
Damping factor (@100 Hz) >200
SN Rate =100 dB
Limiter clip/limit, infra frequency protection, over-power limit, Therminal Limiter
Cooling Airflow from front panel to rear pane
Signal Input 2 x XLR
Signal Output 2 x XLR
Input Sensitivity [dBu] 32 dB
Input Sensitivity [V] 1.0 V / 0.775 V
Input Impedance Bal 20K / Unbal 10K
Output Connector 2 x SpeakOn
Housing 1U standard rack 19"
Installation Standard Flight Case
Width 483 mm (19 in)
Height 44 mm (1,73 in)
Depth 460 mm (18,11 in)
Weight 5,7 Kg (12,56 lb)
