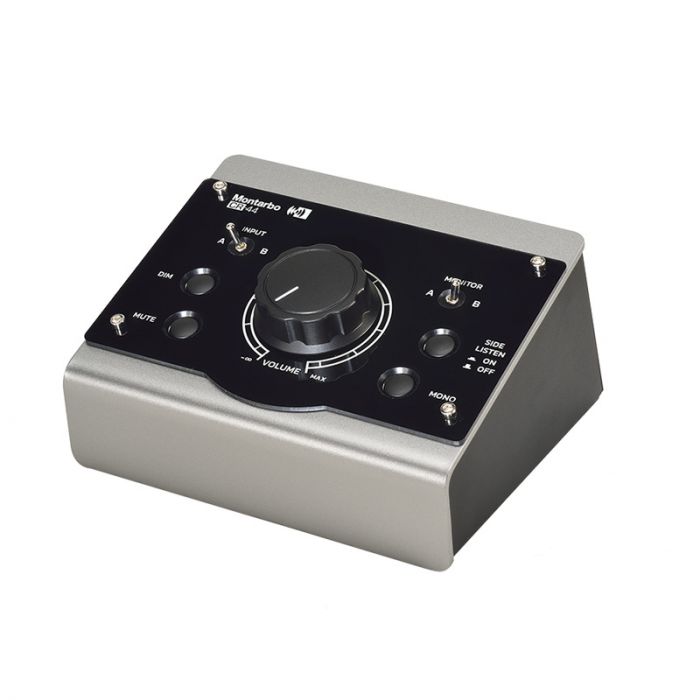

Montarbo CR-44

Absolute must-have for producers and sound engineers, CR 44 is the passive controller that allows the management of two pairs of monitors, for professional and home studio reference listening. A small, compact and complete audio control room, CR-44 features two pairs of outputs on balanced XLR connectors (monitor A, monitor B), one pair of inputs on balanced XLR connectors (Input A), and on balanced TRS connectors (Input B) or 3.5 mm stereo mini-jack. Passive volume control ensures transparent attenuation of the audio signal. On-board controls enable input and output selection, volume, muting, 20 dB attenuation, MONO function, and, last but not least, the Side Listen function, which allows selective listening to the stereo mix in its most "lateral" spatial zones. In fact, this control allows you to invert the phase of the left channel, while the phase of the R channel remains unchanged).In this way, in the stereo listening of the mix, the central zone (mono) is excluded, bringing out the details of the "lateral" zones. Absolute must-have for producers and sound engineers, CR 44 is the passive controller that allows the management of two pairs of monitors, for professional and home studio reference listening. A small, compact and complete audio control room, CR-44 features two pairs of outputs on balanced XLR connectors (monitor A, monitor B), one pair of inputs on balanced XLR connectors (Input A), and on balanced TRS connectors (Input B) or 3.5 mm stereo mini-jack. Passive volume control ensures transparent attenuation of the audio signal. On-board controls enable input and output selection, volume, muting, 20 dB attenuation, MONO function, and, last but not least, the Side Listen function, which allows selective listening to the stereo mix in its most "lateral" spatial zones. In fact, this control allows you to invert the phase of the left channel, while the phase of the R channel remains unchanged).In this way, in the stereo listening of the mix, the central zone (mono) is excluded, bringing out the details of the "lateral" zones.

Type Passive Monitor Control
Input A: (L,R) –XLR balanced; B: (L, R) TRS balanced or Stereo mini-jack 3.5 mm
Output MONITOR A (L, R) XLR balanced MONITOR B (L,R) XLR balanced
Controls Input selector (A,B), monitor (A,B) Volume, DIM, MUTE, SIDE LISTEN, MONO
Frequency Response 0dBu Input: 1dB 10Hz-30kHz
Distortion 0dBu Input@1kHz : 0.0005%
Crosstalk 0dBu Input@1kHz : -115dB
Dimensions 140 mm x 92 mm x 131.4 mm
Weight 670 g
