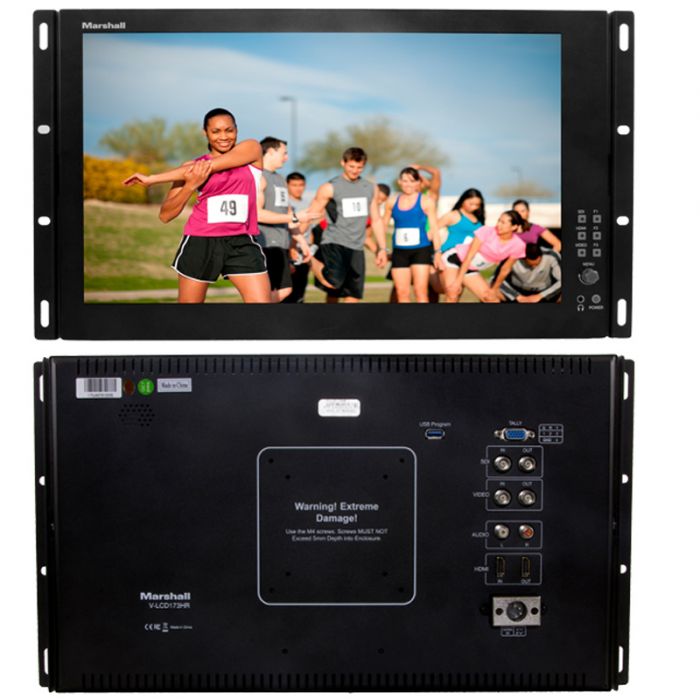

Marshall Electronics V-LCD173HR

17.3" Professional LCD Rack Mount / Desktop Monitor

Rec 709 compliant
LED Tally lights
HDMI/HDSDI inputs and outputs with conversion ability
Range of broadcast and production adjustment settings including markers, brightness, contrast, aspect ratio, peaking, false color, exposure, histogram, and more
Rack ears or VESA mount options
BNC connectors
Two-channel audio monitoring
Image flip ability
Headphone jack
Optical Desktop Stand
V-ST15

Optional Desktop StandThe Marshall V-LCD173HR 17.3-inch native resolution (1920 x 1080) production monitor comes with a range of professional adjustment settings and convenient HDMI/HDSDI inputs and outputs. The Marshall V-LCD173HR comes with built-in histogram, peaking, false color, exposure, adjustable safety markers, and more, and can monitor up to two audio channels as well.

The V-LCD173HR offers unprecedented value for the price and has a versatile 6RU frame that can be rack mounted or used on a desktop. The V-LCD173HR can also convert between HDMI and SDI signals.

SDI BNC x 1 with Loop Out
HDMI x 1 with Loop Out
Composite BNC x 1 with Loop Out
Audio L/R RCA x 2 Line Level
Tally HD-15 Pin compatible with GPI open collector or contact closure to ground/earth
USB 3.0 USB-A x 1 (Firmware Updates)
XLR-12V 4 pin x 1
Outputs

3.5 mm Front Panel Stereo Headphone Jack

Hardware

Included Rack Ears x 2 (6RU height) for standard 19“ rack mount
Back Panel Supports VESA 100x100mm and 75x75mm mounting systems
Optional Desktop Stand Model V-ST15 Available
Weight 7.9 lbs. (3.6 Kg)
Product Dimension: 1.29“ x 17.75“ x 10.5“ / 3.28cm x 45cm x 26.7cm (D x L x W)
