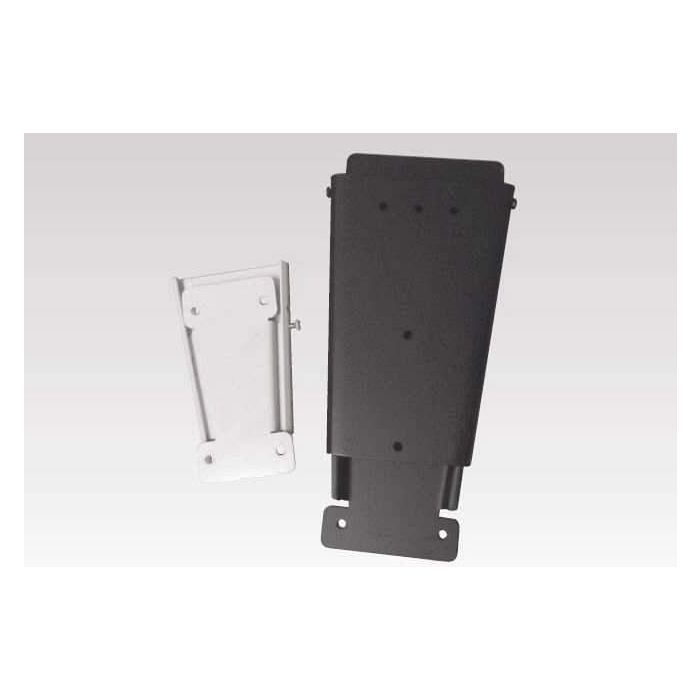

JBL MTC CBT FM2

Wandhalter für CBT 70 J/JE

Key Features:

Provides Low-Profile, Close-to-Wall Mounting Brackets for JBL CBT Line Array Column Speakers
Drop-In Ease of Assembly with Set Screw(s) for Secure Installation
ROHS-Compliant Zinc Plating for Weather Resistance
For Mounting Speaker in Typical Vertical Orientation (not for Horizontal Orientation)
Available in Black or White (-WH)

MTC-CBT-FM2

For Use with CBT 70J-1 and CBT 70J-1/70JE-1 array.
Loudspeaker-Mount Section of bracket attaches to the included insert points on the back panel of the speaker (using the M6x15 mm bolts, flat washers & lock washers that come with the speaker). Mounting points are at 254 mm x 70 mm (10 x 2-3/4 inch) spacing.
Wall-Mount Section has 3 aligned holes vertically; 3 aligned holes horizontally.
Loudspeaker-Mount Section drops easily into Wall-Mount Section. Set screw holds securely.
3.5 mm thick (10-Gauge AWG) Metal
Bracket assembly spaces back of speaker within 20 mm (0.77 inches) of wall (typical).
