JBL MTC CBT FM1 WH

Wandhalter für CBT 50/100 in weiß

Wandhalter für CBT 50/100

Key Features:

Provides Low-Profile, Close-to-Wall Mounting Brackets for JBL CBT Line Array Column Speakers
Drop-In Ease of Assembly with Set Screw(s) for Secure Installation
ROHS-Compliant Zinc Plating for Weather Resistance
For Mounting Speaker in Typical Vertical Orientation (not for Horizontal Orientation)
Available in Black or White (-WH)

MTC-CBT-FM1
For Use with CBT 50LA-1 and CBT 100LA-1.

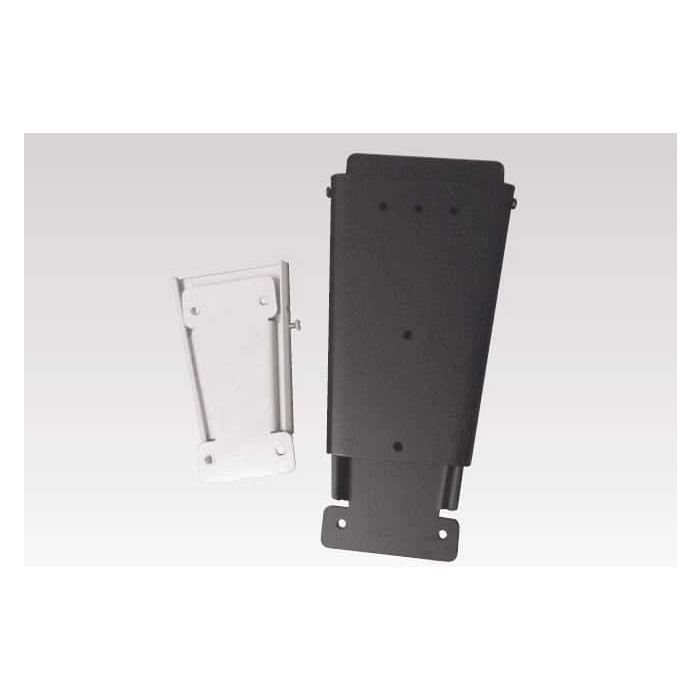

Loudspeaker-Mount Section of bracket attaches to the included insert points on the back panel of the speaker (using the M6x15 mm bolts, flat washers & lock washers that come with the speaker). Mounting points are at 107.6 mm x 50.8 mm (4-1/4 x 2 inch) spacing.
Wall-Mount Section has 3 aligned holes vertically; 3 aligned holes horizontally.
Loudspeaker-Mount Section drops easily into Wall-Mount Section. Set screw holds securely.
2.25 mm thick (13-Gauge AWG) Metal
Bracket assembly spaces back of speaker within
