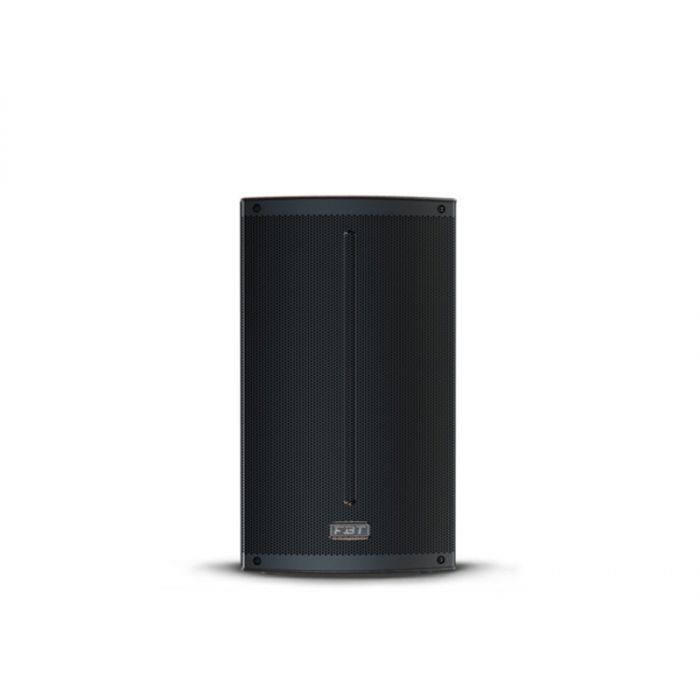

FBT X-LITE 112A

The FBT XLITE 112A is two way design incorporating a 12” low frequency woofer and 1” HF compression driver coupled to a 90°H x 60°V constant directivity horn. With a frequency range of 50Hz - 20kHz the FBT XLITE 112A speaker provide high fidelity sound for both speech and music applications with a maximum SPL of 129dB.

The bi-amplified FBT XLITE 112A active speaker feature a 1200W low frequency amp and a 300W high frequency amp.

The control panel features a three-channel mixer with two micro-line inputs, a stereo input and a dedicated channel for bluetooth 5.0; two xlr inputs, stereo input, XLR output with ch1 or mix link selector, HP filter, two mic-line selectors, DSP preset selector, bluetooth 5.0 with pairing led. 4 x M10 rigging points built-in into the cabinet along with the optional mounting brackets allow the FBT XLITE 112A speaker to be surface mounted on walls or ceilings.

A standard 1.38” speaker stand socket allows the FBT XLITE 112A to be mounted on speaker stand.


Configuration:
2 Way
Frequency response:
50Hz - 20KHz
Low frequency woofer:
12" / 2.5" VC
High frequency driver:
1" - 1.4" VC
Maximum SPL cont/peak:
124 / 129
Dispersion:
90 x 60
Input impedance:
22
Input connector:
XLR IN/OUT, Jack ST
Net Dimension (WxHxD):
356 x 619 x 357
Net Weight:
16.3 KG
Transport Dimension (WxHxD):
440 x 700 x 445
Transport Weight:
18.9
Built in amplifier:
1200 / 300 LF/HF
