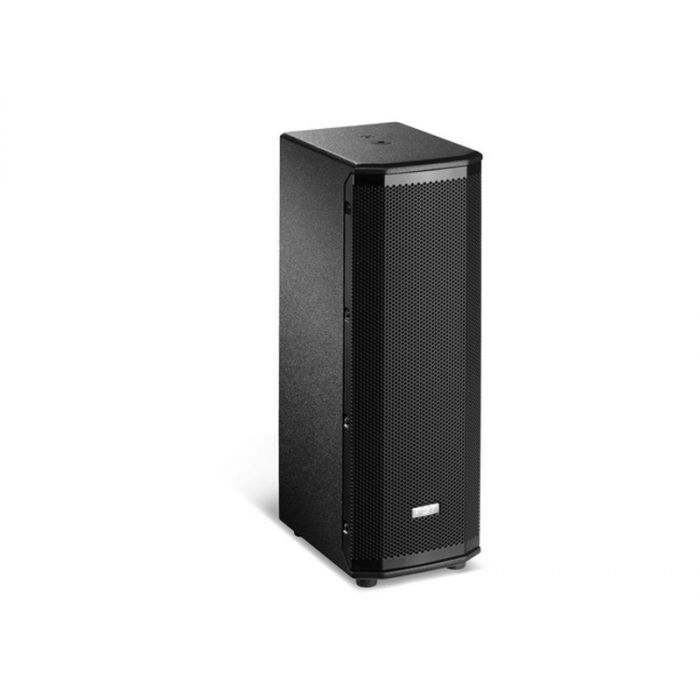

FBT VENTIS 206

For the VENTIS range, quality and flexibility are the watchwords. Based on a powerful combination of B&C compression drivers and FBT’s own custom, long excursion woofers, the 115, 112 and 110 models are two-way, bass reflex designs housed in 15mm birch plywood. A full-grille design backed by specially treated acoustic cloth delivers the characteristic style for which FBT is known, while fully rotatable constant directivity horns ensure accurate coverage.


Configuration:
2 Way
Frequency response:
75Hz - 20kHz -6dB
Low frequency woofer:
2x 6.5
High frequency driver:
1x 1
Input connector:
2x Speakon
Net Dimension (WxHxD):
190 x 560 x 260mm
Net Weight:
11.8kg
Transport Dimension (WxHxD):
290 x 660 x 360mm
Transport Weight:
13.8kg
Recommended Amplifier:
400w RMS
Long term power:
200w
Short term power:
800w
Recommended HP filter:
60Hz 12-24dB/Oct
Maximum SPL continuous/peak:
123/127dB
Nominal Impedance:
8 Ohm
Sensitivity (@1W/1m):
97dB
Dispersion (H x V):
70? x 50? rotatable
