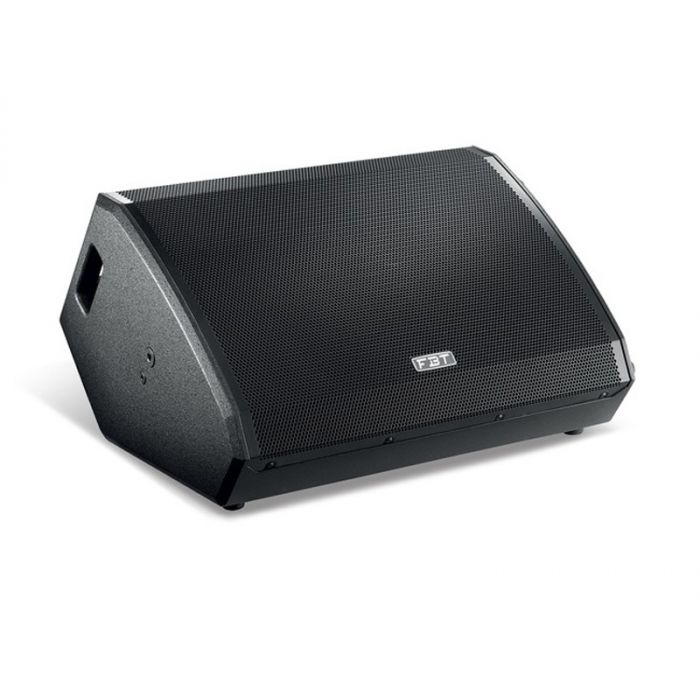

FBT VENTIS 115MA

The 112MA and 115MA bring floor monitoring to VENTIS. Rated at 700W + 200W, the bi-amplified 112MA delivers 132dB SPL in a bass reflex design, using a 320mm (12) coaxial custom woofer with a 64mm (2.5) voice coil, 25mm (1) B&C throat and 44mm (1.7) voice coil.

The enclosure has a frequency response of 55Hz to 20kHz with 90° conical dispersion, while onboard DSP offers six factory presents for a broad range of scenarios. For flexibility in use, the monitor offers a 35mm (1.38) stand socket, two integrated carrying handles and an optional wall mount bracket.

Alternatively, the passive 112M is rated at 400W into 8ohm delivering 129dB SPL, with a built-in passive crossover and speakon NL-4 In and Link Out connectors.



Bi-amped
Speakers equipped: 15" Woofer and 1" tweeter
Performance: 700 W Class D (LF) and 200 W Class H (HF)
DSP with 6 presets and 2 freely configureable memory slots
Housing material: 15 mm birch plywood
Coverage pattern (nominal): 90° conical
Frequency range: 55 Hz - 20.000 Hz (-6 dB)
Max SPL: 133 dB
Inputs: XLR / Jack combined input and RCA ("Cinch" stereo)
Left output: XLR male
Dimensions: (W x H x D): 632 x 354 x 516 mm
Weight: 21.3 kg
Colour: Black
