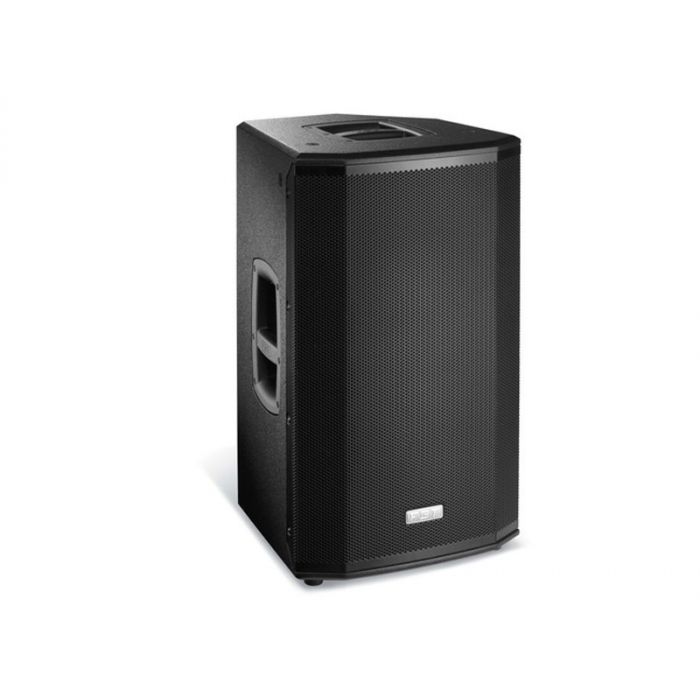

FBT VENTIS 112

For the VENTIS range, quality and flexibility are the watchwords. Based on a powerful combination of B&C compression drivers and FBT’s own custom, long excursion woofers, the 115, 112 and 110 models are two-way, bass reflex designs housed in 15mm birch plywood. A full-grille design backed by specially treated acoustic cloth delivers the characteristic style for which FBT is known, while fully rotatable constant directivity horns ensure accurate coverage.


Configuration:
2 Way
Frequency response:
55Hz - 18kHz -6dB
Low frequency woofer:
12
High frequency driver:
1
Crossover frequency:
1.6kHz
Input connector:
2x Speakon
Net Dimension (WxHxD):
387 x 665 x 380mm
Net Weight:
20.1kg
Transport Dimension (WxHxD):
500 x 765 x 470mm
Transport Weight:
22.6kg
Recommended Amplifier:
400w RMS
Long term power:
200w
Short term power:
800w
Recommended HP filter:
45Hz - 12-24dB/Oct
Maximum SPL continuous/peak:
125/129db
Nominal Impedance:
8 Ohm
Sensitivity (@1W/1m):
98dB
Dispersion (H x V):
80? x 50? rotatable
