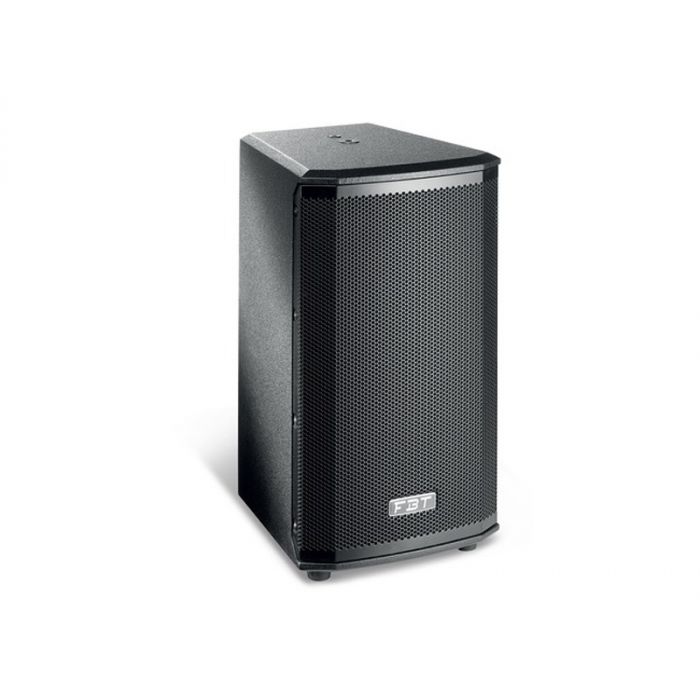

FBT VENTIS 108A

For the VENTIS range, quality and flexibility are the watchwords. Based on a powerful combination of B&C compression drivers and FBT’s own custom, long excursion woofers, the 115, 112 and 110 models are two-way, bass reflex designs housed in 15mm birch plywood. A full-grille design backed by specially treated acoustic cloth delivers the characteristic style for which FBT is known, while fully rotatable constant directivity horns ensure accurate coverage.

The 108A includes a 200mm (8") woofer and 50mm (2") voice coil, driven by 700W + 200W bi-amplification to deliver an impressive 131dB SPL from a supremely portable cabinet.

VENTIS Presets

The FBT VENTIS range offers powerful DSP with 6 versatile presets. Crafted by expert FBT engineers, the presets offer a performance for every requirement.

ORIGINAL / LIVE The renowned, smooth FBT sound
VOCAL A special EQ setting to maximise speech intelligibility
DJ Designed to keep the energy high and your audience dancing
TOURING The reliability and the roar of the industry’s most popular touring systems
LOUDNESS The ultimate preset for listening at a medium or low volume
WARM A special setting to emphasise full-bodied, low-mid frequencies.


Configuration:
2 Way
Frequency response:
65Hz - 20kHz
Low frequency woofer:
8"
High frequency driver:
1"
Maximum SPL cont/peak:
123/131dB
Dispersion:
80 x 50 Rotatable
Input impedance:
22kOhm
Input connector:
XLR/Jack Combo socket with XLR link out, RCA stereo input
Net Dimension (WxHxD):
274 x 500 x 300mm
Net Weight:
13.3kg
Transport Dimension (WxHxD):
530 x 547 x 580mm
Transport Weight:
27kg
AC Power requirements:
640VA
Built-in amplifier LF/HF:
900w (700w LF + 200w HF)
Built-in amplifier peak LF/HF:
1800w (1400w LF + 400w HF)
Power cord:
5m PowerCON True1
