FBT MODUS 118FSA

MODUS is not just another line array in the market. It's the essence of ideas and use of technologies condensed into one focus: the invention of the most flexible sound reinforcement system able to satisfy the broadest applications, from live touring to permanent installation, without compromising quality and expectations.

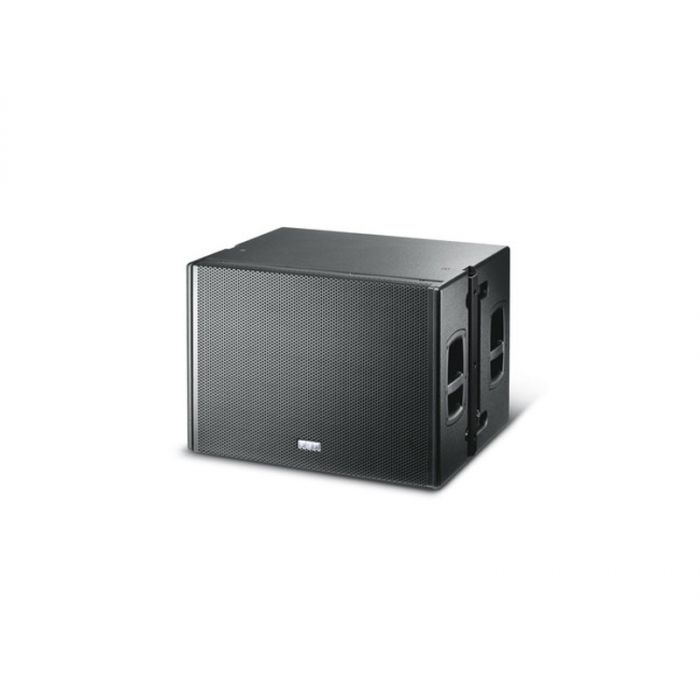

The MODUS 118FSA is a single 18'' subwoofer with a bass-reflex design and compact dimensions that make it ideal for suspension. Designed to support one or two MODUS 4805LA or 4820LA modules and aesthetically similar to a 4805 module, the sub is capable of very high SPL in relation to its size. It can either be suspended above the line array modules or ground stacked. Additionally, the 118FSA can be used in conjunction with the 215FSA to further extend and reinforce low end performance.


Configuration:
1 Way
Frequency response:
36Hz - 120Hz
Low frequency woofer:
18" with 3" VC
Maximum SPL cont/peak:
133 / 137dB
Dispersion:
Omnidirectional
Input impedance:
22 Kohm
Input connector:
XLR with link out
Net Dimension (WxHxD):
727 x 713 x 836mm
Net Weight:
47.5kg
Transport Dimension (WxHxD):
830 x 610 x 680mm
Transport Weight:
57.5kg
AC Power requirements:
640VA
Built-in amplifier LF/HF:
1200w RMS
Built-in amplifier peak LF/HF:
2400w
Power cord:
5m PowerCon True1
