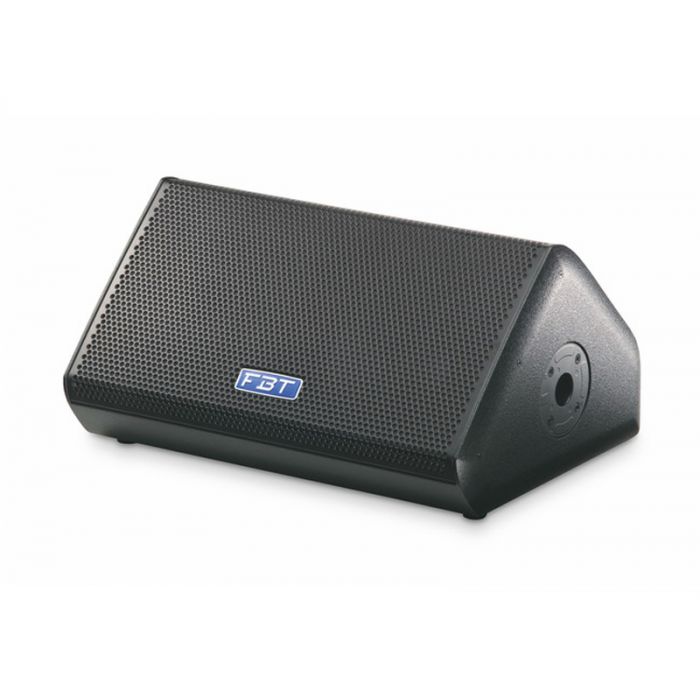

FBT MITUS 210MA

The FBT MITUS 210MA bi-amplified speaker feature 0.59" birch plywood construction; the front shall be protected by a heavy duty metal grille with anti-resonance spacers and exclusive synthetic cloth to protect the drivers and a rugged touring grade scratch resistant black paint finish protects the cabinet exterior.

The FBT MITUS 210MA is a two way coaxial design incorporating 2x 10" B&C custom neodymium magnet coaxial speaker with 2.5" voice coil and 1.4" exit titanium compression driver with 2.5" voice coil, a class D built-in amplifiers 600W RMS to the LF and 300W RMS to the HF with switch mode power supply.

The FBT MITUS 210MA provides a DSP with A/D-D/A low noise converters with 8 selectable presets.
The FBT MITUS 210MA shall meet the following performance criteria: Frequency response of 60Hz to 20kHz, Maximum SPL of 132dB, Nominal impedance 8 Ohm LF / 8 Ohm HF. The control panel provides XLR «in&link», volume, preset, HP filter, GND lift switch.
A standard 1.38" speaker stand socket allows the FBT MITUS 210MAto be mounted on speaker stand.


Configuration:
2 Way
Frequency response:
60Hz - 20kHz
Low frequency woofer:
2x 10" with 2.5" VC
High frequency driver:
1x 1.4" with 2.5" VC
Maximum SPL cont/peak:
127 / 134dB
Dispersion:
70 x 70 conical (HxV)
Input impedance:
22kohm
Crossover frequency:
1.2 kHz
Input connector:
XLR with link out
Net Dimension (WxHxD):
547 x 290 x 402mm
Net Weight:
19kg
Transport Dimension (WxHxD):
890 x 390 x 510m
Transport Weight:
21.2kg
AC Power requirements:
640VA
Built-in amplifier LF/HF:
600/300w RMS
Built-in amplifier peak LF/HF:
1200/600w
Power cord:
5m PowerCon
