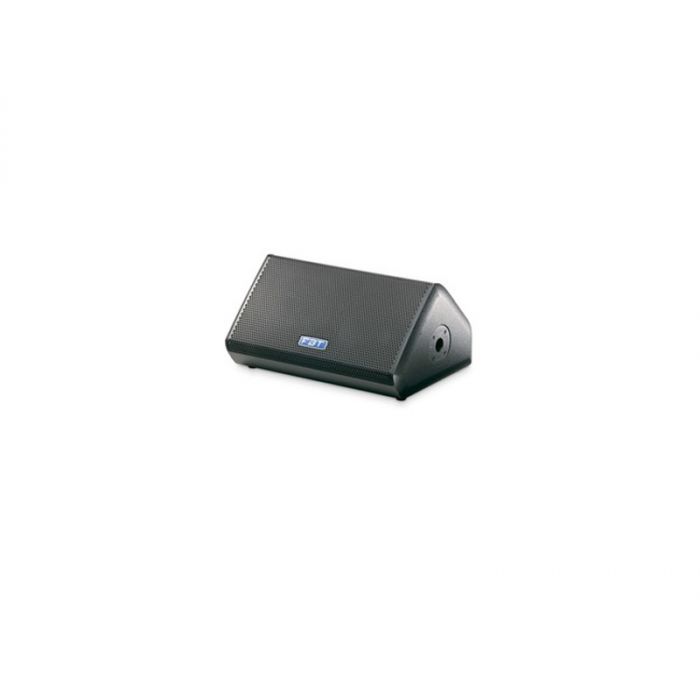

FBT MITUS 210M

The FBT MITUS 210M two-way passive stage monitor shall incorporate 2 x 10” B&C custom neodymium magnet coaxial speaker with 2.5” voice coil and 1.4” exit titanium compression driver with 2.5” voice coil (70° conical dispersion); B&C custom 10" neodymium magnet woofer with 2.5" voice coil.

The FBT MITUS 210M shall meet the following performance criteria: Frequency response of 65Hz to 20kHz, Frequency sensitivity of 100dB , Maximum SPL of 132dB, Recommended power amplifier 800W RMS/8 Ohm.
Hi-grade passive internal crossover featuring «soft-trip» circuitry protection of low frequencies and high frequencies.
The front shall be protected by a heavy duty metal grille with anti-resonance spacers and exclusive synthetic cloth to protect the drivers and a rugged touring grade scratch resistant black paint finish protects the cabinet exterior. Input connectors shall be parallel wired Neutrik NL4 speakon.
The FBT MITUS 210M feature 5/8" birch plywood construction and a 1.38" stand socket allows the FBT MITUS 210M to be mounted on speaker stand.


Configuration:
2 Way
Low frequency woofer:
2x 10" with 2.5" VC
High frequency driver:
1 x 1.4" with 2.5" VC
Maximum SPL cont/peak:
128 / 132dB
Dispersion:
70 x 70 conical (HxV)
Input impedance:
8ohm
Crossover frequency:
1.3kHz
Input connector:
2x Speakon NL4-MD-V In & Thru
Net Dimension (WxHxD):
574 x 290 x 402mm
Net Weight:
17kg
Transport Dimension (WxHxD):
890 x 390 x 510mm
Transport Weight:
19.1kg
