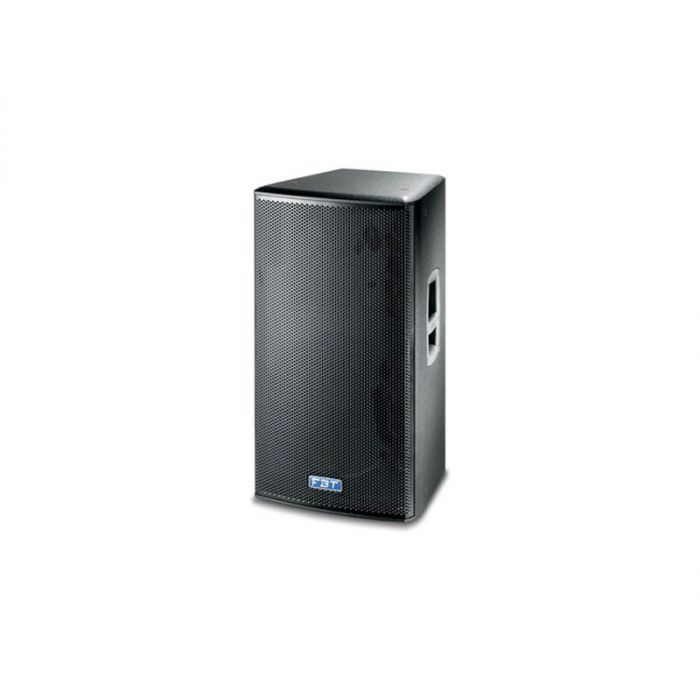

FBT MITUS 152

The FBT MITUS 152 two-way passive reinforcement speaker system shall incorporate 1 x 15” B&C neodymium woofer with 3” voice coil and 2” exit B&C neodymium driver with 2.5” voice coil coupled to a rotatable 60° x 40° horn; thanks to the rotatable HF horn it is possible to create horizontal arrays of 2 enclosures for a total coverage of 100°.

The FBT MITUS 152 shall meet the following performance criteria: Frequency response of 47Hz to 20kHz, Frequency sensitivity of 100dB, Maximum SPL of 132dB, Recommended power amplifier 800W RMS / 8 Ohm.

The FBT MITUS 152 passive speaker feature 0.59" baltic birch plywood construction covered in a scratch & scuff resistant black finish; the front shall be protected by a heavy duty metal grille with antiresonance spacers and exclusive synthetic cloth to protect the drivers.
The hi-grade passive internal crossover featuring «soft-trip» circuitry protection of the LF woofer and HF driver. Input connectors shall be parallel wired Neutrik NL4 speakon. The 12 M10 anchoring points built into the cabinet allow the FBT MITUS 152 speaker to be surface mounted on ceilings and a standard 1.38" speaker stand socket allows the FBT MITUS 152 to be mounted on speaker stands.


Configuration:
2 Way
Frequency response:
47Hz - 20KHz
Low frequency woofer:
15" with 3" VC
High frequency driver:
2" with 2.5" VC
Maximum SPL cont/peak:
128 / 132dB
Dispersion:
60 x 40 (HxV)
Input impedance:
8 ohm
Crossover frequency:
1.2kHz
Input connector:
2x Speakon NL4-MD-V In & Thru
Net Dimension (WxHxD):
425 x 805 x 421mm
Net Weight:
32kg
Transport Dimension (WxHxD):
550 x 915 x 560mm
Transport Weight:
35.5kg
