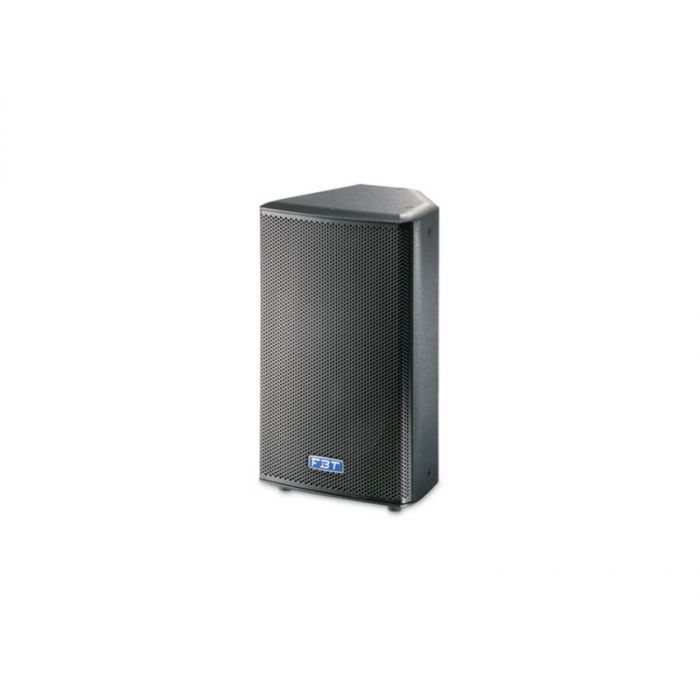

FBT MITUS 112
Verfügbarkeit unbekannt
2-way Passive speaker - 12" + 1" - 700Wrms
700W-8OHM – 131dB SPL
Hi-grade passive internal crossover featuring “soft-trip” circuitry protection of LF and HF transducers.
Speakon NL4MD-V connectors IN & LINK OUT.
The MITUS 112 is a passive cabinet featuring a 12" Low Frequency with a 1" High frequency driver capable of up to 131dB SPL.
Long Term Power - 350w
Short Term Power - 1200w
Recommended amplification - 700w RMS
Nominal Impedance - 8 ohm
Sensitivity (@1W/1m) - 99dB
Recommended HP Filter - 40hz - 24dB Octave
Configuration:
2 Way
Frequency response:
55Hz - 18KHz @ 6dB
Low frequency woofer:
1x 12
High frequency driver:
1x 1
Maximum SPL cont/peak:
127dB / 131 dB
Dispersion:
80 x 50 (H x V)
Crossover frequency:
1.6khz
Input connector:
2x Speakon NL4 - In & Thru
Net Dimension (WxHxD):
380 x 660 x 280mm / 15 x 26 x 15in
Net Weight:
18kg / 39.7lb
Transport Dimension (WxHxD):
485 x 495 x 750mm / 19.1 x 19.5 x 29.5in
Transport Weight:
20kg / 44.1lb
| Marke | FBT |
|---|
