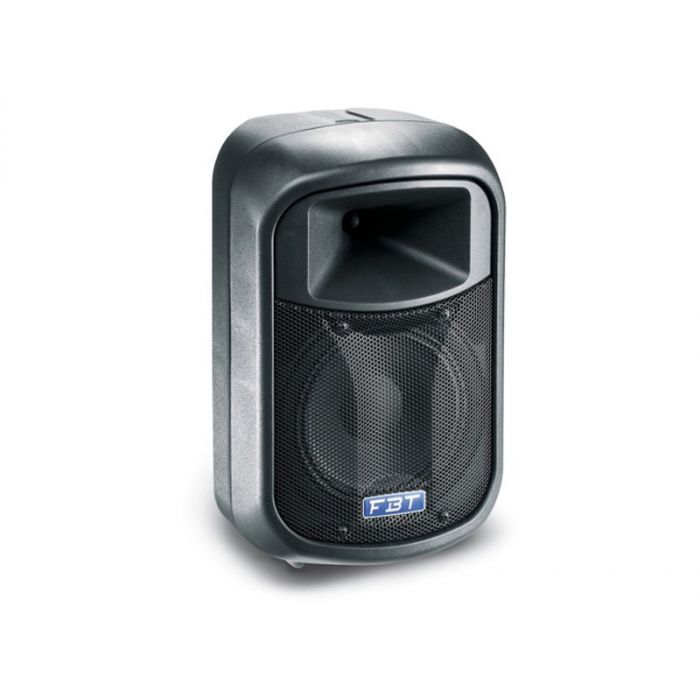

FBT J 8

The FBT J8 series speakers feature lightweight, yet rugged gas injected molded polypropylene cabinet construction. Available in black or white finish the FBT J8 series speakers modern cabinet appearance provides fixed installations with an elegant design that blends into any decor.

With the use of optional accessories the FBT J8 speakers can be mounted on mic stands for many nearfield monitor applications, live sound and as a studio monitor.

The FBT J8 is of two way design incorporating an 8" low frequency woofer and 1" HF custom compression driver. Cabinet dispersion is 90°H x 60°V allowing for wide pattern coverage. The internal crossover is at a fixed frequency of 2.5kHz. With a frequency range of 65Hz - 20kHz the FBT J8 speakers provide high fidelity sound for both speech and music applications with a maximum SPL of 121.5dB.

A front face steel grille protects the speaker from external damage.

Ideal for small fixed installations the FBT J8 speaker system have an impedance of 8 Ohm. The two M6 fly points built into the cabinets along with the optional mounting brackets allow the FBT J8 speakers to be surface mounted on walls or ceiling. For portable or fixed use the FBT J8 speakers can be mounted on mic stands by using the optional adapters for vertical mounting. Rear panel connections feature 2 x Neutrik Speakon NL4.


Configuration:
2 Way
Frequency response:
65Hz - 20KHz -6dB
Low frequency woofer:
8" - 1.7" Voice Coil
High frequency driver:
1" - 1" Voice Coil
Maximum SPL cont/peak:
118.5 / 121.5 dB
Dispersion:
90 x 60 Degrees H x V
Crossover frequency:
2.5 KHz
Input connector:
2 x Speakon NL4 In & Thru
Net Dimension (WxHxD):
255 x 415 x 245 mm
Net Weight:
6.6 KG
Transport Dimension (WxHxD):
330 x 480 x 320 mm
Transport Weight:
8.1 KG
Recommended Amplifier:
160w RMS
Long term power:
80w
Short term power:
320w
Recommended HP filter:
55Hz -24dB
Sensitivity (@1W/1m):
96.5dB
Impedance:
8 Ohm
