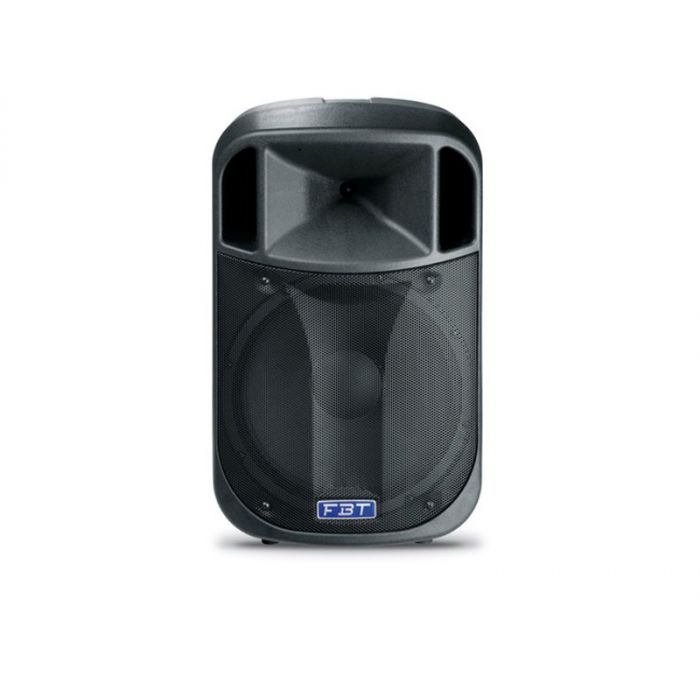

FBT J 15A

Same woofer, amplifier, power supply and On-Board Digital signal processing as J 15A
4 DSP preset specially designed for DJ users
Two channel input mixer with stereo/mono OUT
Input panel with XLR/jack input and XLR link, Mic/line switch, LEvel, HP filter, 4 Preset Switch, Stereo RCA input, level, XLR OUT for dasy-chaining with Stereo/Mono switch selector


2-way bi-amplified system in Bass-Reflex
Polypropylene enclosure with integrated handle except J 5A/5
2 x M10 anchoring points (15A, 12A, DJ 15A), 2 x M6 suspension points (8A, 5A)
25mm (1”) HF custom AF compression driver (15A, 12A, 8A, DJ 15A)
90°H x 60°V constant directivity horn (15A, 12A, 8A, DJ 15A)


Configuration:
2 Way
Frequency response:
48Hz - 20Khz
Low frequency woofer:
15" with 2" VC
High frequency driver:
1" with 1" VC
Maximum SPL cont/peak:
125 / 129dB
Dispersion:
90 x 60 (HxV)
Input impedance:
220 Kohm
Crossover frequency:
1.8Khz
Input connector:
XLR-Jack Combo with link out
Net Dimension (WxHxD):
410 x 663 x 387mm / 16.14 x 26.10 x 15.23in
Net Weight:
14kg / 30.86lb
Transport Dimension (WxHxD):
495 x 740 x 475mm / 19.48 x 29.13 x 18.70in
Transport Weight:
17.1kg / 37.69lb
AC Power requirements:
400VA
Built-in amplifier LF/HF:
350/100w RMS
Built-in amplifier peak LF/HF:
700/200W
Power cord:
5m IEC
