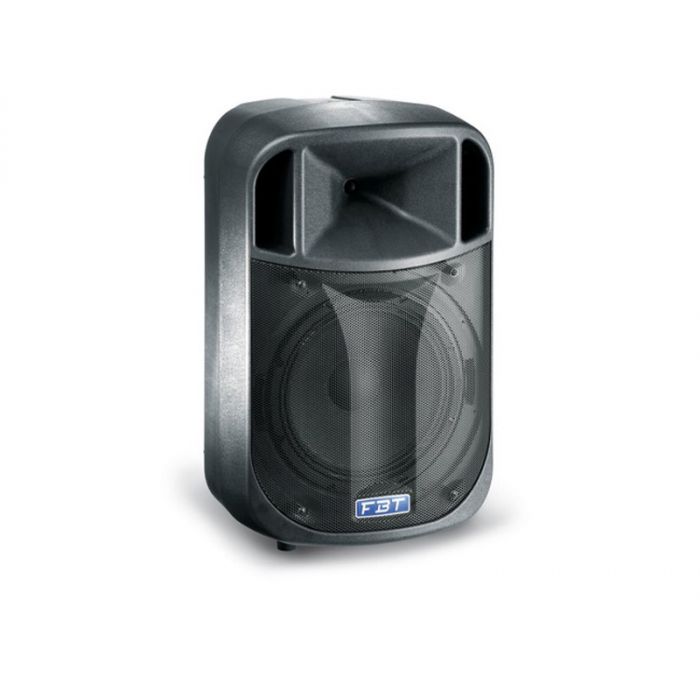

FBT J 12A

More technology for improved performance and quality value for money

The new J series is a technologically advanced range of products that improves on the performance of the previous Jolly line. The new J series is a competitive, value for money range of speakers.
The range is based on the development of three new high efficiency class-D amplifiers with power specifications of 350 + 100W for the J 15A & J 12A, 200 + 50W for the J 8A and 80 + 40W for the J 5A.

These amplifiers have been designed 'from the ground up' in FBT’s R&D laboratories.
The largest amplifier model that equips the J 15A and J 12A has a switch mode power supply as well as a digital signal processor with 4 pre-sets.


Configuration:
2 Way
Frequency response:
55Hz - 20kHz
Low frequency woofer:
12
High frequency driver:
1
Maximum SPL cont/peak:
123 / 127db
Dispersion:
90 x 60 (HxV)
Input impedance:
8 ohm
Crossover frequency:
2 kHz
Input connector:
2x Speakon NL4 In & Thru
Net Dimension (WxHxD):
410 x 663 x 387mm / 16.14 x 26.10 x 15.23in
Net Weight:
14.1kg / 31.8lb
Transport Dimension (WxHxD):
495 x 740 x 475mm / 19.48 x 26.10 x 18.7in
Transport Weight:
17.2kg / 37.91lb
AC Power requirements:
400VA
Built-in amplifier LF/HF:
350/50W RMS
Built-in amplifier peak LF/HF:
700/200W
Power cord:
5m EC
