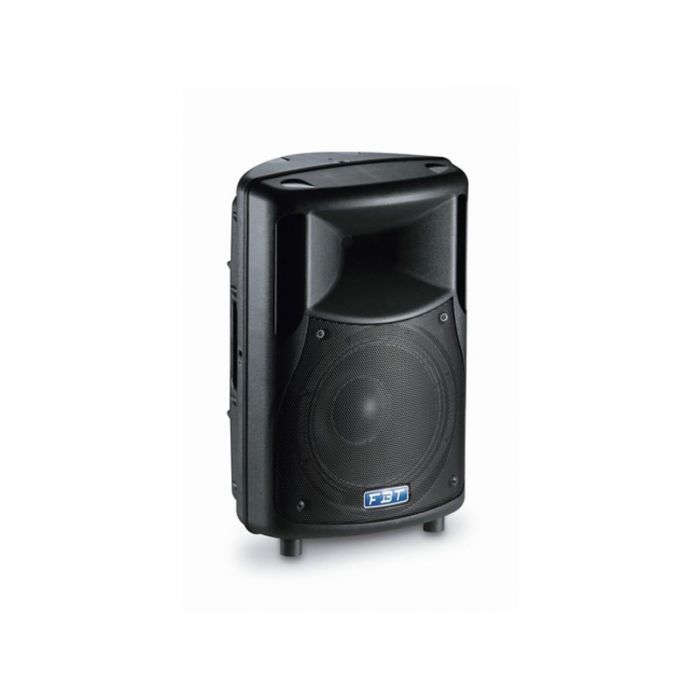

FBT HIMaxX 40

Verfügbarkeit unbekannt

Bestellnr.
194310

2-way Passive speaker - 12" + 1" - 500Wrms

With the new HiMaxX series, FBT establishes a reference point on the scenario of 12” and 15” enclosures in polypropylene for sound reinforcement, introducing performance and technical content of a standard unthinkable up until now. FBT HiMaxX takes its place alongside the FBTMaxX series, exalting all the technical features.

The study of a new cabinet in polypropylene, the use of a switch mode power supply and high efficiency power amplifiers and the redesign of the loudspeakers were the activities of the FBT R&D team aimed at maximizing the power weight ratio.

This series comprises three models; two 2-way full-range enclosures in polypropylene, HiMaxX 40 (12”+1”) and HiMaxX 60 (15’’+1.4”), plus a compact 18’’ bandpass SUB in birch plywood (HiMaxX 100Sa).

Compact and light weight, HiMaxX brilliantly solve all the most demanding requests from buffs, musicians and professionals looking for powerful, versatile and very high quality loudspeaker enclosures. Ideal for live and sound reinforcement applications requiring ease of transport, they are also suited to fixed installations, thanks to the cabinets’ format and optional accessories.



HiMaxx 40 is a passive 12" Mid-top cabinet that is 500w RMS @ 8ohm producing 127dB SPL

The low frequency driver is a custom designed B&C neodymium driver with a 3" voicecoil and a 1" compression driver with a 1.7" voicecoil also manufactured by B&C



Long Term Power: 250w
Short Tem Power: 1000w
Recommend amplifier: 500w
Sensitivity: 99dB


Configuration:
2 Way
Frequency response:
50Hz - 20kHz
Low frequency woofer:
12" with 3" VC
High frequency driver:
1" with 1.7" VC
Maximum SPL cont/peak:
127 / 131dB
Dispersion:
90 x 60 (HxV)
Input impedance:
8 ohm
Crossover frequency:
1.6 kHz
Input connector:
2x Speakon
Net Dimension (WxHxD):
407 x 634 x 370mm / 16 x 29.4 x 14.5in
Net Weight:
16kg / 35.2lb
Transport Dimension (WxHxD):
395 x 720 x 470mm / 19.5 x 28.3 x 18.5in
Transport Weight:
18.5kg / 40.8lb

Mehr Informationen
Marke FBT
