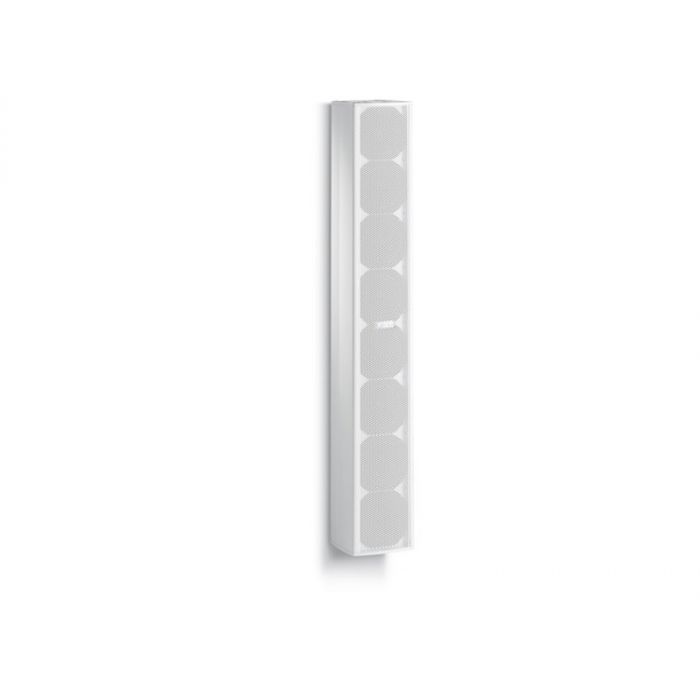

FBT DLA 804A

Built in an elegant aluminium scratch resistant cabinet, DLA is an active steerable array system that provides exceptional intelligibility in highly reverberant environments. The characteristics of the lobe radiation directional controls, the high SPL, the HI-FI frequency range, the elegance and overall dimensions, make the DLA system particularly suitable for high quality voice reproduction even in acoustically challenging environments whilst the aesthetics compliment any environment.

The ability to change the vertical dispersion characteristics is ideally suited to reverberant environments where the audio is able to be digitally steered to the audience and away from reflective ceilings and floors. It is also invaluable where different dispersion control is required at different times, for instance where tiered seating is periodically used and the audience's listening position changes. When using the software connected through network cable, multiple scenes can be programmed and these recalled at the touch of a button.

Designed to be used independently or as part of a larger system with multiple DLA 804 or used to extend the low end and increase the SPL of the DLA 1244. Both DLA models have a dedicated SUB output to extend performance at low frequencies. The DLA system features a RS-485 network connection for total control through PC. Wall mount installation is possible with the the supplied bars.


Configuration:
8 Way
Frequency response:
120Hz - 20KHz -6dB
Low frequency woofer:
8 x 4" (1" Voice Coil)
Maximum SPL cont/peak:
120/123 dB
Input impedance:
22 Kohm
Crossover frequency:
3 KHz
Input connector:
Euroblock with loop and SUB OUT
Transport Dimension (WxHxD):
220 x 1040 x 220 mm
Transport Weight:
14.5 KG
Built in amplifier:
8 x 50w
Built in amplifier peak:
8 x 100w
Dispersion (H x V):
100 degrees x Digitally Variable +30 degrees / -30 degrees (Vertical Beamwidth Angle 10 degrees - 40 degrees)
Weight:
12KG
Dimensions (WxHxD):
130x965x131
