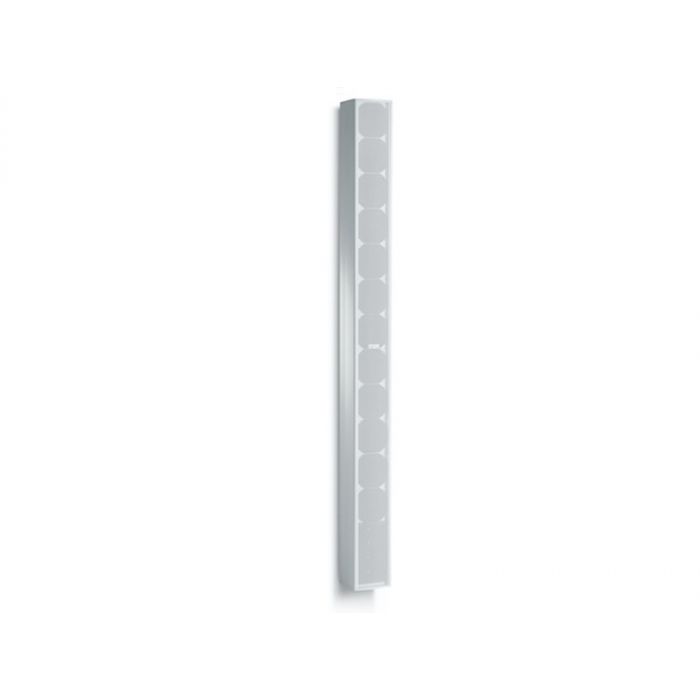

FBT DLA 1244A

Built in an elegant aluminium scratch resistant cabinet, DLA is an active steerable array system that provides exceptional intelligibility in highly reverberant environments. The characteristics of the lobe radiation directional controls, the high SPL, the HI-FI frequency range, the elegance and overall dimensions, make the DLA system particularly suitable for high quality sound even in acoustically challenging environments whilst the aesthetics compliment any environment. The design of the wavefront has the effect to soften off approx. 3dB whilst doubling the distance from the source.

The ability to change the vertical dispersion characteristics is ideally suited to reverberant environments where the audio is able to be digitally steered to the audience and away from reflective ceilings and floors. It is also invaluable where different dispersion control is required at different times, for instance where tiered seating is periodically used and the audience's listening position changes. When using the software connected through network cable, multiple scenes can be programmed and these recalled at the touch of a button.

The DLA 1244A with a 100Hz to 20kHz frequency response, is recommended for voice and high-quality music reproduction; it can be used in conjunction with our DLA 804A in order to create a full range system. Both DLA models have a dedicated SUB output to extend performance at low frequencies. The DLA system features a RS-485 network connection for total control through PC. Wall mount installation is possible with the the supplied bars.


Configuration:
16 Way
Frequency response:
100Hz - 20KHz -6dB
Low frequency woofer:
12 x 4" (1" VC)
High frequency driver:
4 x 1" Neodynium
Maximum SPL cont/peak:
123/126 dB
Input impedance:
22 Kohm
Crossover frequency:
3 KHz
Input connector:
Euroblock with loop and SUB OUT
Transport Dimension (WxHxD):
220 x 1760 x 220
Transport Weight:
24.5 KG
AC Power requirements:
650 VA
Built-in amplifier LF/HF:
12 x 50w / 4 x 50w
Built-in amplifier peak LF/HF:
12 x 100w / 4 x 100w
Dispersion (H x V):
100 degrees x Digitally Variable +30 degrees / -30 degrees (Vertical Beamwidth Angle 10 degrees - 40 degrees)
Weight:
22 KG
Dimensions (WxHxD):
130 x 1685 x 131 mm
