FBT CLA 604

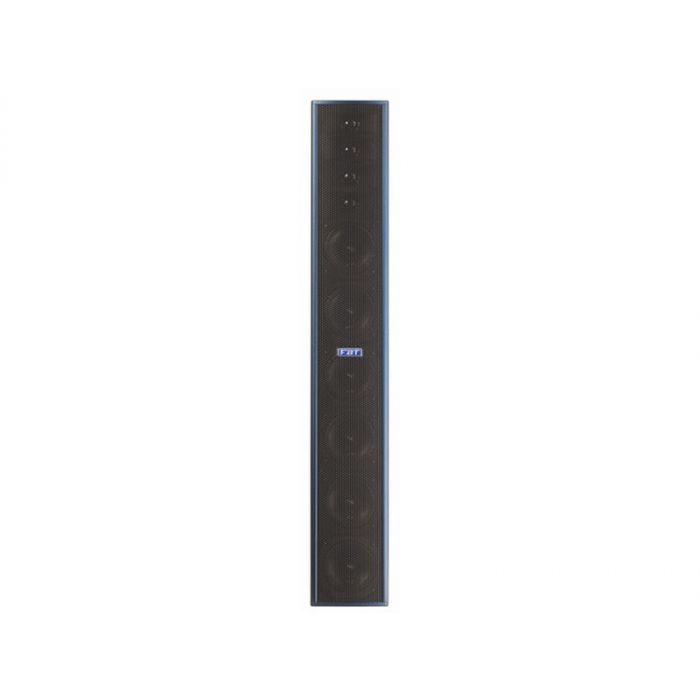

The FBT VERTUS CLA 604 two-way passive speaker system incorporates 6 x 4" custom woofer with 1" voice coil and 4 x 1" neodymium dome tweeters on waveguide.

The FBT VERTUS CLA 604 meets the following performance criteria: frequency response of 140Hz to 20kHz, maximum SPL of 110dB (100W, 1m). It features an extruded aluminium construction, the front is protected by a heavy duty metal grille and is fitted with fireproof cable according to UNI 9795 2010 (length 35.43 inch).

The included fixing plate allows direct mounting to the wall where Horizontal and Vertical tilt are not required whereas the optional fixing system makes mounting easy and enables the speaker unit to be turned in the best direction. The FBT VERTUS CLA 604 can be setup in constant impedance or constant voltage mode (100V/50W-100W) thanks to an included line transformer.

The FBT VERTUS CLA604 is intended for indoor installations.

Available in White or Black

Configuration:
Compact Line Array - 2 Way
Frequency response:
140Hz - 20kHz
Low frequency woofer:
6x 4"
High frequency driver:
4x 1" Dome Tweeters
Maximum SPL cont/peak:
110dB
Dispersion:
200?X70? (500Hz) / 190?x40? (1KHz) / 120?x15? (2kHz) / 110?x30? (4kHz)
Input impedance:
8 Ohm
Net Dimension (WxHxD):
130 x 849 x 130mm
Net Weight:
8kg
