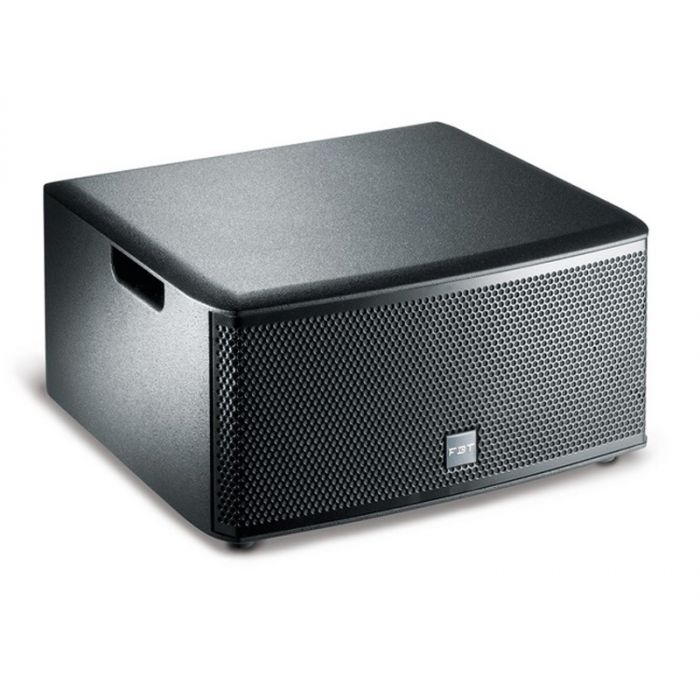

FBT ARCHON 208S

600W / 8ohm 132dB SPL

The Archon series of full-range and bi-amped speaker systems have been designed to provide ample bandwidth and high SPL for an accurate sound reproduction in the most various application projects.

With the Archon series FBT wants to meet today’s expectations of the installed sound market: a new generation of improved speakers responding to high quality sound requirements for modern indoor spaces.

The FBT Archon series lines up three 2-way full range/bi-amp models and three 2-way full range compact models; in addition, two low-profile subwoofers (2x8” and 2x15”) increase the low frequency extension of the desired systems. All Archon speakers are elegantly designed and crafted to meet the most demanding architectural design.

The FBT Archon series has been engineered to fulfill the need of high quality sound in bars, pubs, restaurants, retail shops, clubs, entertainment venues, fitness centers, conference rooms, theatres, educational institutions, houses of worship, museums, exhibition centers, cruise ships, corporate A/V, granting excellent speech intelligibility, wide and precise band coverage, ease of installation thanks to the flexible mounting hardware.


The Archon features are:

Stylish architectural cabinet design
Acoustically transparent steel grilles with protection cloth
High SPL, fast responding dynamics, excellent intelligibility, wide band, extremely low distortion
Baltic birch plywood cabinets available in black or white extra texture paint
Choice of different RAL paint colours on order
Choice of different paint finish: glossy, matt, textured and more, on order
Custom designed low frequency woofers, made in Italy
Custom designed high frequency compression drivers, made in Italy
Rotatable horns for optimal horizontal or vertical sound dispersion angle
Selectable bi-amp/full range crossover network
Full suspension possibilities through multiple M10 / M5 threaded rigging points and a wide range of mounting hardware
Possibility to install line transformers for 100V/70V applications
Possibility to order weatherproof versions for outdoor use
Possibility to extend low frequencies performance through dedicated and compact subwoofers (Archon 208S, Archon 215S)

Configuration:
1 Way
Frequency response:
50Hz - 500Hz
Low frequency woofer:
2x 8" with 2" VC
Maximum SPL cont/peak:
129 / 132 dB
Dispersion:
Omnidirectional
Input impedance:
8 ohm
Crossover frequency:
External active required
Input connector:
2 x speakon NL4 in & thru
Net Dimension (WxHxD):
550 x 285 x 480mm / 21.65 x 11.22 x 18.89in
Net Weight:
18kg / 39.6lb
Transport Dimension (WxHxD):
690 x 370 x 625mm / 27.16 x 14.56 x 24.60in
Transport Weight:
20kg / 44lb
