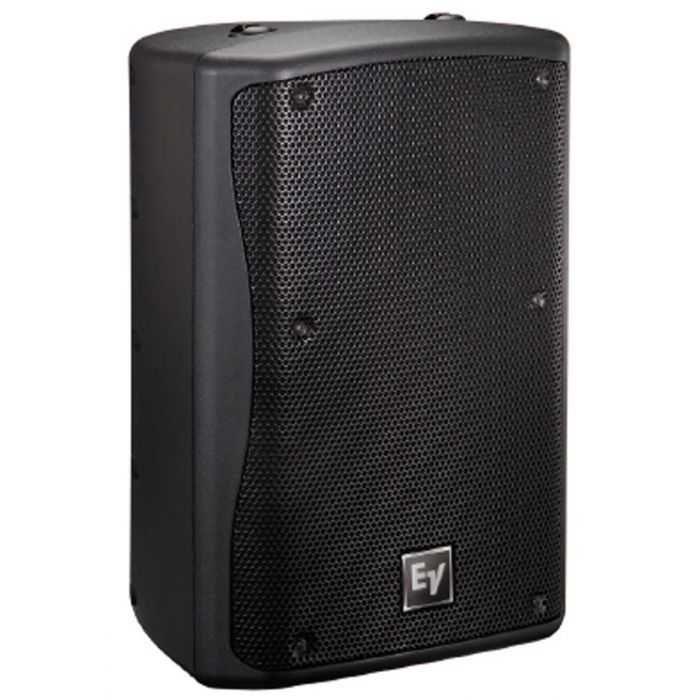

Electro-Voice Zx3-90PI

Verfügbarkeit unbekannt

Bestellnr.
159616

12-inch Two-Way Passive 90° x 50°, 600W Weather-Resistant Loudspeaker System

Key Features:

•DVX3121 12” LF Transducer with Forced Air Cooling
•ND2 2” Voice Coil, 1” Exit Neodymium Compression Driver
•90° x 50° Coverage Pattern
•600W Continuous (2400W Peak) Power Handling
•High Sensitivity, 131 dB Maximum SPL
•Adjustable Monitor Angle (45° or 55°)
•2 Anchor Plates for Single Stud Fittings and 7 Integral Suspension Points
•Available in Black or White
•All Weather IEC 529, IP44, & MIL810 Environmental Specs
•Full Line of Accessories


General Description:

The Electro-Voice Zx3 is the new standard of no compromise audio perfor­mance and versatility in a simple to use, compact package. The ZX3-90PI features a molded polymer enclosure that is inherently water resistant. The addition of a multilayer grille with hydrophobic cloth and a gland nut input connection allows for a highly weather resistant system.
At its heart are the transducers. First is the DVX3121 high performance low frequency transducer. EV used advanced computer aided design tech­niques to create forced air, directional voice coil cooling for high power and efficiency. Finite element analysis was used to optimize the suspension and magnetic structure for long, linear travel to provide low distortion and greater LF extension. These features and details, such as forged magnetic components and special materials, provide reliability with a 500W power rating in a lightweight transducer. Next is the ND2, a 2-inch voice coil com­pression driver based on neodymium motor structure to allow for maximum output while reducing size and weight to a minimum. Its precision phasing plug and titanium diaphragm provide better HF performance, while the integral heatsink provides cooling for high power output.
The high tech enclosure uses injection-molded high-impact polypropylene structural foam to make the Zx3 incredibly durable. The enclosure geometry elements have been carefully designed to provide maximum rigidity and bass response. By design the Zx3 is also a perfect solution for stage moni­tors by allowing two angles (45° or 55°) without any additional accessories.
Two coverage patterns are available; 60° x 60° coverage for long-throw and cluster applications, 90° x 50° coverage for wider coverage or shorter distances.
The Zx3 is equipped with two anchor plates for rigging with single stud-fittings, along with two more possible anchor plate attachment points on the bottom. For permanent suspension or attaching brackets, the Zx3 also has two M8 inserts on the top and bottom, two under the handle, and one on the back of the enclosure, for a total of 7. All versions are available in black or white.


Technical Specifications:

Freq. Response1 (-3 dB): 58 Hz - 15 kHz
Freq. Range1 (-10 dB): 48 Hz - 20 kHz
Rec. Hipass Frequency: 50 Hz
Axial Sensitivity1: 97 dB (1W/1m)
Max. Calculated SPL: 131 dB
Coverage (Horiz. x Vert.): 90° x 50°
Power Handling (Passive): 600W Continuous, 2400W Peak
LF Power Handling (Biamp): 500W Continuous, 2000W Peak
HF Power Handling (Biamp): 40W Continuous, 160W Peak
LF Transducer: DVX3121, 12 in (305mm) Driver
HF Transducer: ND2, 1 in (25.4mm) exit Neodymium Compression Driver
Crossover Frequency: 2 kHz
Nominal Impedance: 8 Ohms
Minimum Impedance: 6.2 Ohms
Connectors: 2 Conductor SJO Cable and Gland Nut
Enclosure Material: Polypropylene Structural Foam
Suspension: Enclosure has locations for 4 Single-Stud Attachment Plates and 7 Forged Steel Eye­bolts - 2 on Top, 2 on Bottom, 2 on Side, and 1 on Rear of Enclosure
Grille: Polyester Powder Coated, 16GA Galvanized Steel, with Rotatable Logo
Environmental Spec: IEC 529 IP24 / IP44
Dimensions (H x W x D): 613mm x 397mm x 362mm (24.14” x 15.64” x 14.26”)
Net Weight: 19.8 kg (43.7 lbs)
Shipping Weight: 22.1 kg (48.6 lbs)

1 Half Space Measurement.
