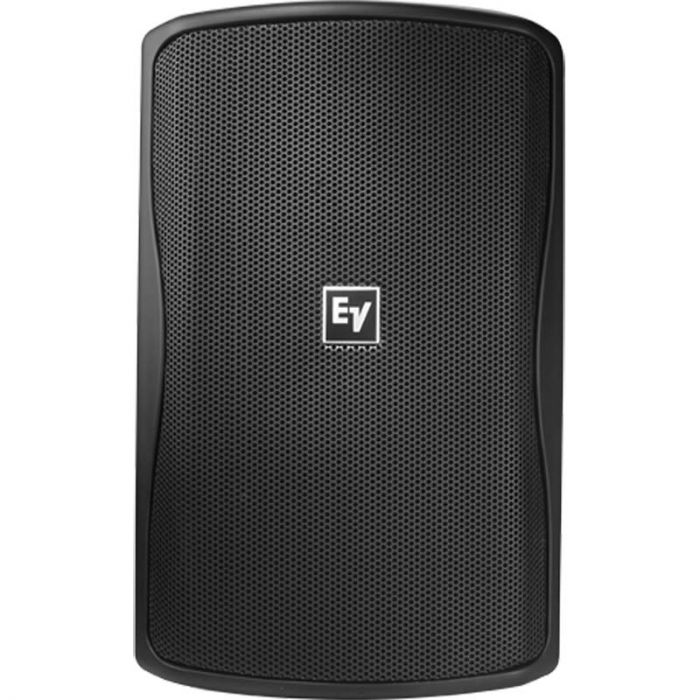

Electro-Voice Zx1i-100t

•Patented ASC (Automatic Saturation Compensation)
•Also available in 70/100 volt transformer version
•Integrated QuickSAM heavy-duty Strong-Arm Mounting bracket
•EN54-24 type B certification 1438/CPD/0323 with TC-ZX1i cover (Sold separately) installed (only available in select regions)


Color Black, white
Input Connections 4-pin Phoenix
Nominal Impedance 8 Ω
Speaker Type Full-range, Mid-High, Two-Way
Frequency Response (-3 dB) 60 - 20000 Hz
Frequency Response (-10 dB) 48 - 20000 Hz
Internal Crossover Yes
Recommended High-Pass Frequency 40 Hz
Sensitivity 1 W/1 m 94 (90x50), 92 (100x100) dB
Max. SPL/1m (calc) 123 (90x50), 121 (100x100) dB
Coverage (Nominal -6 dB) H 90/100 ° Rotatable
Coverage (Nominal -6 dB) V 50/100 ° Rotatable
Rotatable Horn Yes
System Power Handling (Continuous/Program/Peak) 200/400/800 Watts
LF Transducer EV8L 8-inch Weatherized Cone
HF Transducer DH2005 1-in Exit True Compression Driver
Crossover Frequency 1700 Hz
Minimum Impedance 6 Ω
Enclosure Material High Impact Polystyrene
Flying Yes
Outdoor Yes
Grill Polyester Powder Coated, 18GA Galvanized Steel
Height 451 mm (17.76")
Width 282 mm (11.1")
Depth 263 mm (10.35")
Weight Net 8.4 kg (18.52 lbs)
