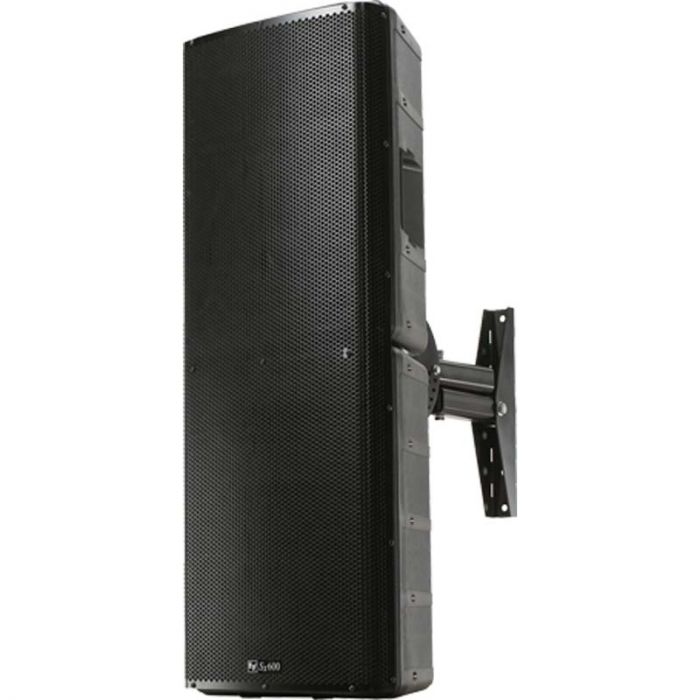

Electro-Voice Sx 600PI

The Sx600 is a high-output, indoor/outdoor speaker system that features a dual-element vertical line array for clarity and intelligibility. The Sx600 handles 600-watts (2400 watts peak), and can be vertically mounted.


•Very High Sensitivity, 105 dB 1 W/1 m (139 dB Peak SPL)
•Easy, Versatile, SuperSAM Mounting System included
•All Weather IEC 529 IP 44 & Mil Spec 810 Environmental Specs
•Available 600 Watt Internal Transformer (Sx600PIX)
•EN54-24 Type B certification 1438-CPD-0300
•Waterproof connection by SJO cable with gland nut


Axial Sensitivity (SPL, 1 W @ 1 m) 105 dB
Chassis Size 304.8 mm (12")
Color Black
Directivity Index 11.3 dB
Input Connections SJO cable/gland nut
Speaker Type Full-range, Two-Way
Frequency Response (-10 dB) 70 - 16000 Hz
Internal Crossover Yes
Recommended High-Pass Frequency 90 @Q=1.6 Hz
Sensitivity 1 W/1 m 105 dB
Max. SPL/1m (calc) 139 dB
Coverage (Nominal -6 dB) H 65 °
Coverage (Nominal -6 dB) V 65 °
System Power Handling (Continuous/Program/Peak) 600//2400 Watts Const.-dir. horn
LF Transducer One 12-inch DL12BFH (LF), one 12-inch ND12 (MB)
MF Transducer ND12A
HF Transducer 2-inch DH2T
Crossover Frequency 1800 Hz
Nominal Impedance (Passive) 4 Ω
Minimum Impedance 3.5 Ω
Flying Yes
Outdoor Yes
Height 1163 mm (45.79")
Width 429 mm (16.89")
Depth 312 mm (12.28")
Weight Net 36.3 kg (80.03 lbs)
