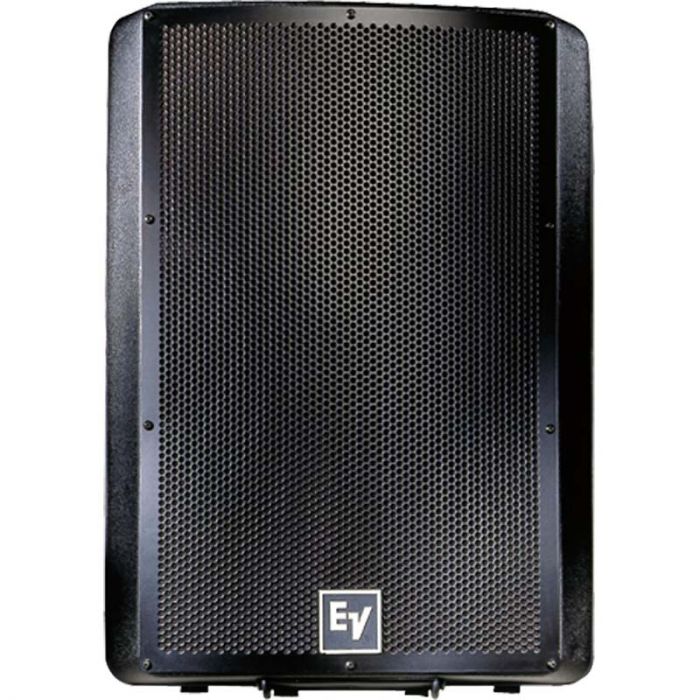

Electro-Voice Sx 300PIX

• Sx300 performance with enhanced weather-resistance
• PIX version has multi-tap transformer for 70 or 100 V use
• Ideal for installation, alone or in arrays
• 1.25-inch DH3/2010A titanium HF compression driver
• 65º x 65º Constant-directivity Varipath™ horn
• Ring-Mode Decoupling (RMD™) for increased intelligibility
• Power handling: 300 W continuous, 1200 W peak
• Neutrik Speakon(R) (PI) or Phoenix (PIX) connectors
• Trapezoidal enclosure of high-impact polypropylene
• Rubber feet and mating sockets for stacking
• Integral handles, pole socket, suspension points
• Available in black or white


Axial Sensitivity (SPL, 1 W @ 1 m) 99 dB
Chassis Size 304.8 mm (12")
Color Black, White
Directivity Index 11.1 dB +2.4/-4.1 dB
Input Connections 2 four-pin Speakon
Speaker Type Full-range, Mid-High, Two-Way
Transformer Yes
Frequency Response (-10 dB) 50 - 20000 Hz
Internal Crossover Yes
Sensitivity 1 W/1 m 99 dB
Max. SPL/1m (calc) 131/123 dB Low Z/100V
Coverage (Nominal -6 dB) H 65 ° Const.-dir. horn
Coverage (Nominal -6 dB) V 65 ° Const.-dir. horn
System Power Handling (Continuous/Program/Peak) 300//1200 Watts Long-Term/Short-Term
LF Transducer 12-inch DL12BFH
HF Transducer 1.25-inch DH3/2010A
Crossover Frequency 1500 Hz
Nominal Impedance (Passive) 8 Ω
Minimum Impedance 5 Ω
Flying Yes
Outdoor Yes
Height 586 mm (23.07")
Width 429 mm (16.89")
Depth 312 mm (12.28")
Weight Net 17.7 kg (39.02 lbs)
