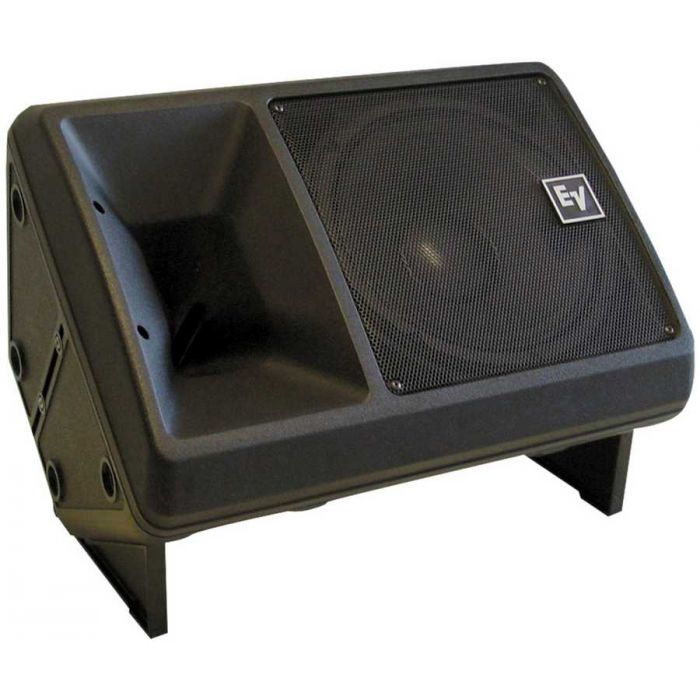

Electro-Voice Sx 300 E

The Sx300E, with 300-watt continuous power handling (1200-watt peak) is the world‘s best lightweight, high-power speaker system. Known as the standard around the world, SX300E can be found in virtually every situation.

* Designed for House of Worship, Pro Music, and other applications.
* 2-Way Full-range
* High Sensitivity
* Ultra-linear frequency response
* Vented LF enclosure
* 1.25” voice coil (titanium diaphragm)
* PRO™ Driver protection circuit
* HF-horn features Varipath™
* Trapezoidal (25° per side)
* 4 x M8x1.25 attachment inserts
* Overview of variants see right spread sheet
* Sx300 PI outdoor version
* Sx300 PIX for 70V/100V

Chassis Size 304.8 mm (12")
Color Black
Directivity Index 11.1 dB
Input Connections Four-pin Speakon (2)
Speaker Type Fullrange
Speaker Type Mid-High
Speaker Type Two-Way
Frequency Response (-10 dB) 50 - 20000 Hz
Internal Crossover Yes
Sensitivity 1 W/1 m 99 dB
Max. SPL/1m (calc) 131 dB
Coverage
(Nominal -6 dB) H° 65 °
Coverage
(Nominal -6 dB) V° 65 °
System Power Handling (Continuous/Program/Peak) 300 Watts
LF Transducer DL12BFH
HF Transducer DH2010
Crossover Frequency 1500 Hz
Nominal Impedance (Passive) 8 Ω
Minimum Impedance 6 Ω
Flying Yes
Outdoor No
Height 586 mm (23.07")
Width 429 mm (16.89")
Depth 312 mm (12.28")
Weight Net 14.5 kg (31.97 lbs)
