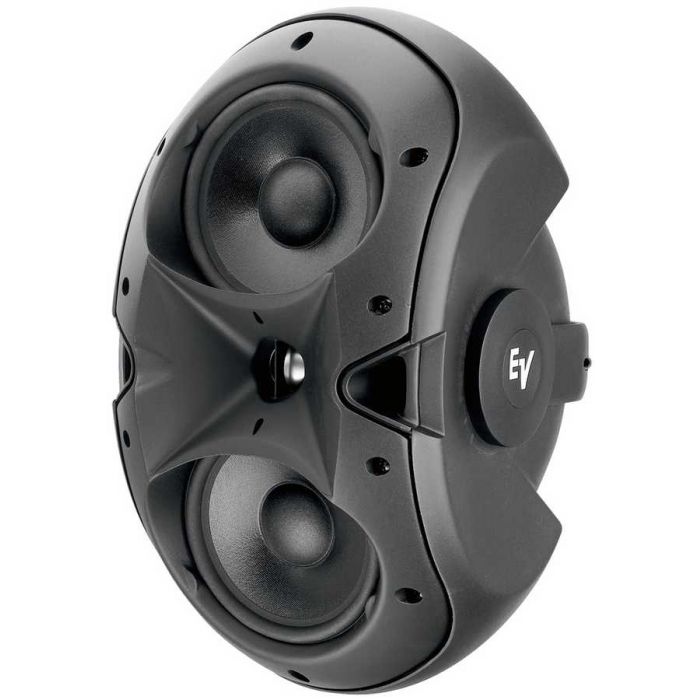

Electro-Voice EVID 6.2T Schwarz (Paar)

The EVID 6.2 is comprised of dual, 6“, low-frequency drivers and a 1“, waveguide. It is perfect for applications that require the capability to fill large spaces with sound. The flexible Strong-Arm-Mount system provides versatility to accommodate any installation challenge.

* Designed for Commercial Sound/Life Safety, House of Worship, and other applications.
* Two-way, high-output full range
* Vented LF enclosure
* High sensitivity
* 1” voice coil (titanium diaphragm) with Neodymium magnetic structure
* HF section features Coherent Coverage Waveguide™ to minimize interference
* Full bandwidth overload protection for HF and LF
* Three-dimensional ellipse (for compact look)
* Magnetically shielded for video applications
* Comes with Strong Arm Mount (SAM™) and a hex key
* Suspension insert for SAM™; safety point on rear side

Chassis Size 152.4 mm (6")
Color Black
Input Connections Spring Terminal
Speaker Type Fullrange
Speaker Type Mid-High
Speaker Type Two-Way
Transformer Taps (Transformer Version Only) 70 V/100 V: 15 W, 30 W, 60 W, 8 Ω Bypass
Frequency Response (-10 dB) 62 - 20000 Hz
Internal Crossover Yes
Sensitivity 1 W/1 m 94 dB
Max. SPL/1m (calc) 122 dB
Coverage
(Nominal -6 dB) H° 100 °
Coverage
(Nominal -6 dB) V° 80 °
System Power Handling (Continuous/Program/Peak) 150 Watts
Nominal Impedance (Passive) 8 Ω
Minimum Impedance 6 Ω
Outdoor Yes
Height 419 mm (16.5")
Width 228 mm (8.98")
Depth 298 mm (11.73")
Weight Net 5.3 kg (11.68 lbs)
