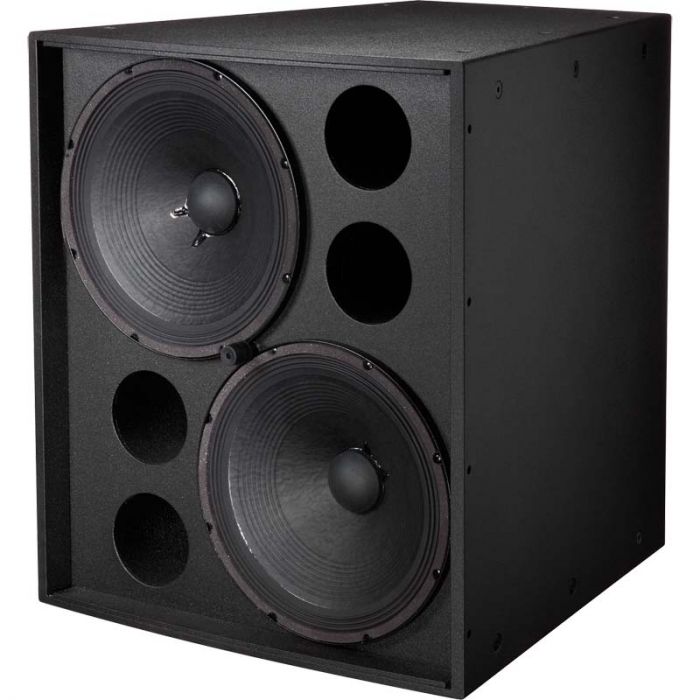

Electro-Voice EVF-2151D-BLK

• High power for installations
• Two premium DVX3159A woofers
• 101 dB sensitivity, 137 dB max SPL
• Power: 1000 W cont., 4000 W peak
• Trapezoidal 13-ply birch enclosure
• EVCoat, PI, or fiberglass (FG) finish
• M10 suspension points (28)


Coverage (Nominal -6 dB) Omnidirectional in normal operating range
Environmental Specs Standard versions: IEC 60529 IP44. PI and FG versions: IEC 60529 IP55
Input Connections Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover
Nominal Impedance Passive: N/A, Bi-amp: 4 Ω Biamp
Frequency Response (-3 dB) 40 - 2600 Hz
Frequency Response (-10 dB) 30 - 3200 Hz
Recommended High-Pass Frequency 35 Hz
Sensitivity 1 W/1 m 101 dB
Max. SPL/1m (calc) 137 dB
Coverage (Nominal -6 dB) H Omnidirectional °
Coverage (Nominal -6 dB) V Omnidirectional °
System Power Handling (Continuous/Program/Peak) 1000/2000/4000 Watts
LF Transducer Two DVX3159A 15-inch (381 mm) drivers
Minimum Impedance Passive: N/A, Bi-amp: 2.7 Ω Biamp
Enclosure Material 13-ply weather-resistant birch with EVCoat
Grill Standard versions: 16-ga Galvanneal, Powdercoat, with screen behind. PI and FG versions: 18-ga Stainless, Powdercoat, with hydrophobic cloth behind
Suspension (28) M10 Threaded Points (one EBK-M10-EVI kit of four forged eyebolts included)
Height 768.6 mm (30.26")
Width 675.6 mm (26.6")
Depth 726.4 mm (28.6")
Weight Net 53.1 kg (117.07 lbs)
