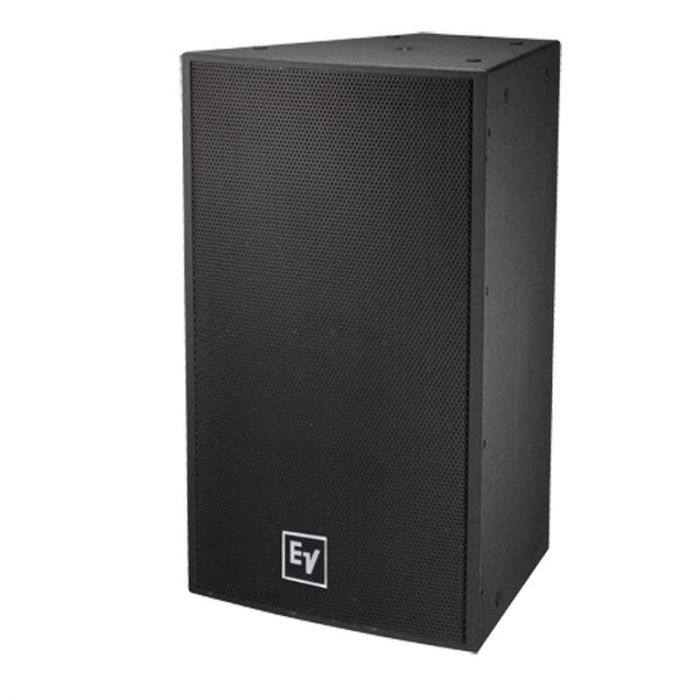

Electro-Voice EVF-1152D/66-PIB

EVF-1152D/66 features a 60° x 60° rotatable waveguide, design for mid-far field medium long throw raw spread coverage pattern.


• Compact and lightweight
• Low distortion, high efficiency
• Ideal for fixed installations
• DVX3151A woofer with fully symmetric drive
• 3-inch DH7N titanium/neodymium HF compression driver
• Rotatable Constant-directivity waveguide
• Six available patterns with coverage from 40º to 90º
• 100 dB sensitivity, 134 dB maximum SPL
• Power handling: 600 W continuous, 2400 W peak
• 4th-order crossover with HF protection
• Trapezoidal 13-ply birch enclosure in three finishes: EVCoat, PI, and fiberglass (FG)
• M10 threaded suspension points (22)
• Transformer kit available for distributed systems


Environmental Specs Standard versions: IEC 60529 IP44, PI and FG versions: IEC 60529 IP55
Input Connections Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover
Frequency Response (-3 dB) 70 - 18000 Hz
Frequency Response (-10 dB) 40 - 21000 Hz
Recommended High-Pass Frequency 45 Hz
Sensitivity 1 W/1 m 100 dB
Max. SPL/1m (calc) 134 dB
Coverage (Nominal -6 dB) H 60 °
Coverage (Nominal -6 dB) V 60 °
System Power Handling (Continuous/Program/Peak) 600/1200/2400 Watts
LF Transducer DVX3151A 15-inch (381 mm) woofer
LF Nominal Impedance 8 Ω
HF Transducer DH7N 3-inch (76mm) diaphragm compression driver
Crossover Frequency 1300 Hz
Nominal Impedance (Passive) 8 Ω
Minimum Impedance 6 Ω
Enclosure Material 13-ply weather-resistant birch with EVCoat
Grill 16 GA powder-coated galvanneal with screen behind
Suspension (22) M10 threaded suspension points
Height 768.6 mm (30.26")
Width 469.8 mm (18.5")
Depth 466.6 mm (18.37")
Weight Net 34.4 kg (75.84 lbs)
Shipping Weight 39.1 kg (86.2 lbs)
