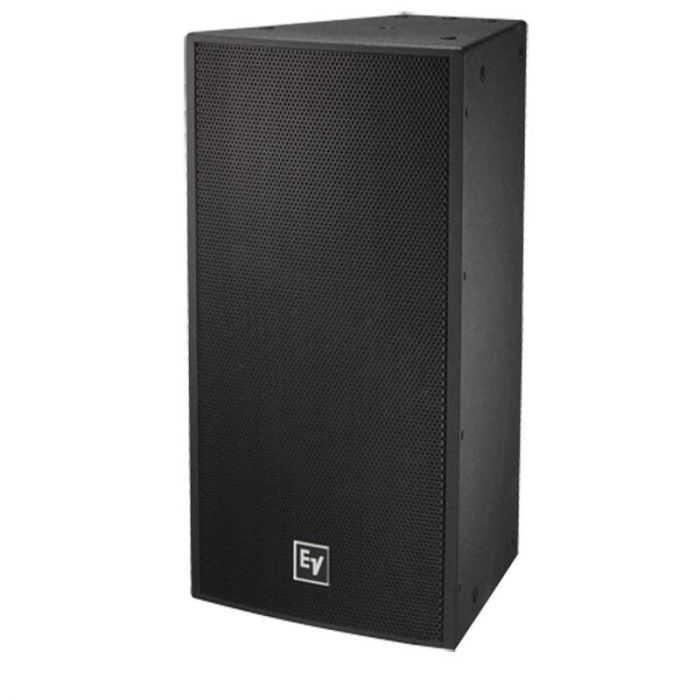

Electro-Voice EVF-1122D/96-PIB

EVF-1122D/96 features a 90° x 60° rotatable waveguide, design for medium-near field medium throw coverage pattern.


• 3-inch DH7N titanium/neodymium HF compression driver
• Rotatable Constant-directivity waveguide
• Six available patterns with coverage from 60º to 120º
• 97 dB sensitivity, 131 dB maximum SPL
• Power handling: 600 W continuous, 2400 W peak
• 4th-order passive crossover with HF protection
• Trapezoidal 13-ply birch enclosure in three finishes: EVCoat, PI, and fiberglass (FG)


Environmental Specs Standard versions: IEC 60529 IP44, PI and FG versions: IEC 60529 IP55
Input Connections Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover
Frequency Response (-3 dB) 57 - 18000 Hz
Frequency Response (-10 dB) 49 - 21000 Hz
Recommended High-Pass Frequency 65 Hz
Sensitivity 1 W/1 m 97 dB
Max. SPL/1m (calc) 131 dB
Coverage (Nominal -6 dB) H 90 °
Coverage (Nominal -6 dB) V 60 °
System Power Handling (Continuous/Program/Peak) 600/1200/2400 Watts
LF Transducer DVX312A 12-inch (305 mm) woofer
LF Nominal Impedance 8 Ω
HF Transducer DH7N 3-inch (76mm) diaphragm compression driver
Crossover Frequency 1300 Hz
Nominal Impedance (Passive) 8 Ω
Minimum Impedance 6 Ω
Enclosure Material 13-ply weather-resistant birch with EVCoat
Grill 16 GA powder-coated galvanneal with screen behind
Suspension (22) M10 threaded suspension points
Height 768.6 mm (30.26")
Width 406.3 mm (16")
Depth 413.3 mm (16.27")
Weight Net 29.7 kg (65.48 lbs)
Shipping Weight 34.4 kg (75.84 lbs)
