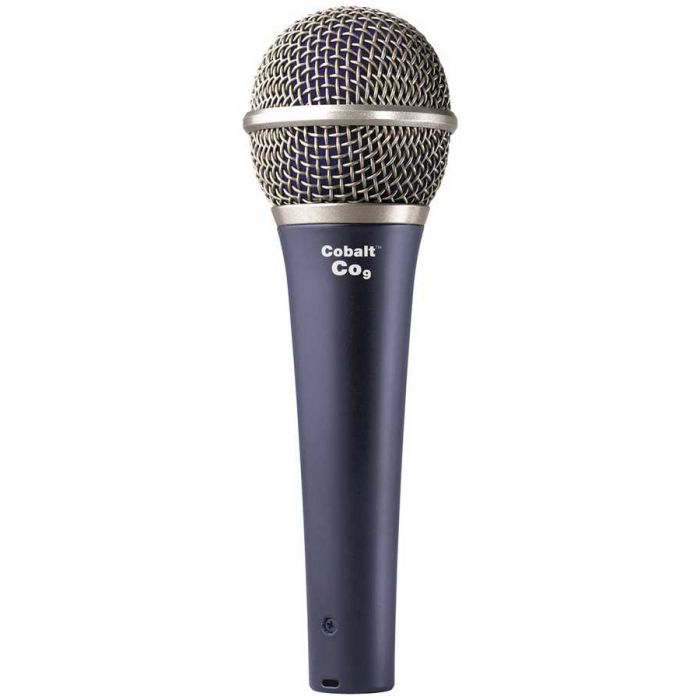

Electro-Voice CO9

Erstklassiges Mikrofon für Stimme

Technische Daten

Element Dynamisch
Neodym-Magnetstruktur
Frequenzgang 50 Hz bis 18 kHz
Richtcharakteristik Niere
lmpedanz Low-Z symmetrisch (600 Ohm)
Empfindlichkeit
Spannung am offenen Schaltkreis 3.2 mV/PA (-50 dBV) re 1 Pa*
1 Pa = 94 dB SPL
Mikrofonanschluß 3-Pin XLR-Anschluß, Pin 2 “heiß”
Polarität Pin 2 “heiß”, bezogen auf Pin 3
bei positiver membranauslenkung
Farbe & Ausführung Haltbare Polyurethanfarbe
Materialien Druckgussgehäuse aus Zink
Abmessungen
Länge 6.7 in. (170 mm)
Umfang 2.1 in. (53 mm)
Schaft .85 in. (22 mm)
Gewicht
Nettogweicht 11.8 oz. (335 grams)
Gewicht inkl. Verpackung 29.9 oz. (848 grams)
Zubehör (im Lieferumfang)
Stativadapter (schwarz)
Mikrofonetui

The Co9 is a favorite of vocalists in any musical genre. Regardless of the live performance application, sound technicians and engineers feel confident with this mic. A slight bass roll-off and accentuated mid-range make this a superb sounding microphone.

* Designed for House of Worship, Performance & Sports Venues, and other applications.
* Cardioid polar pattern with excellent feedback rejection and acoustic isolation
* Slight bass roll-off and accentuated midrange
* Includes stand adapter and zippered vinyl carrying case

Audio Frequency Response 50 - 18,000 Hz ±3 dB
Case Material Die cast zinc
Connector Type 3-pin XLR
Diameter (Max) 53 mm (2.09")
Element Dynamic
Finish Cobalt
Impedance, Low-Z balanced 600 Ω
Mic Type Handheld
Open Circuit Voltage 3.2 mV/Pascal
Polar Pattern Cardioid
Wired/Wireless Wired
Height 173 mm (6.81")
Weight Net 11.82 oz (335 g)
