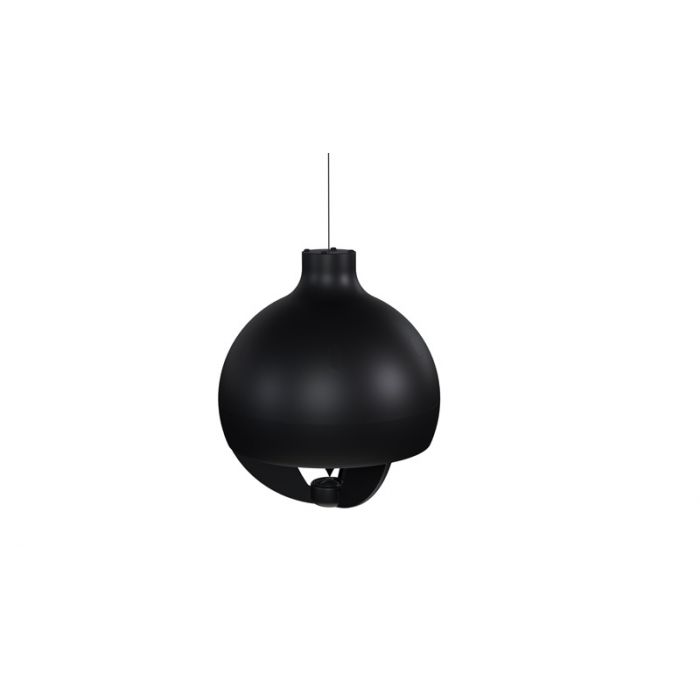

Ecler WiSpeak GLOBE5PD black

WiSpeak GLOBE is a 2-way self-powered sphere loudspeaker with wireless audio reception and control capabilities under the control of the Master unit. It includes a 5" woofer and a 1" silk dome tweeter. 360° horizontal dispersion. Available in two versions - with light-rail compatible installation system (RM) and pendant installation system (PD).

- 5" woofer + 1" tweeter
- 32W RMS power rating
- Dispersion 360° x 160° (HxV)
- ABS reinforced with fibreglass
- PD version with 2 x 5m steel cords for pendant installation
- PD version with Euroblock power supply connection
- 1x WiSpeak wireless audio signal received, from the transmitter it is paired to
- Front panel UNPAIR control and LED indicators
- 12 meters maximum range, open space, for the WiSpeak wireless network (from the transmitter to each receiver)
- Available in white (RAL 9003) and black colour (RAL 9005)

WiS (RF WIRELESS DIGITAL AUDIO)
Frequency band
U-NII 5.1 – 5.8GHz (supported worldwide)
Up to 24 non-overlapping RF channels
DFS support"
Coverage range
Up to 12m from a TX to any paired RX, direct line of sight
Audio channels
1 mono audio ch received from the WiS TX network
Audio transmission
24bit uncompressed, 48kHz SR
Digital Audio Sample size
24bit
Digital Audio Sampling rate
48kHz
Digital Audio Frequency Response
20Hz – 20kHz (-0.1dB)
Digital Audio converters
DAC Resolution: 24 bit
DAC Dynamic range: 100dB
Latency
From TX IN to RX AUX OUT <6ms
From TX IN to RX Speaker <6ms
Jitter among receivers ±1us
Pairing time
Up to 120s
Reconnection time
Up to 120s
SYSTEM
Effective Freq. Range
70 Hz – 20 kHz (-10dB)
Coverage angle
111º (conical)
Sensitivity
91 dB (1W/1m)
Maximum SPL
106 dB Continuous / 112 dB Peak
TRANSDUCERS
Ways
2-ways full range
Driver
5" woofer + 1" tweeter
Low frequency driver
5" woofer
High frequency driver
1" Silk Dome Tweeter
Crossover filter
4.2KHz
Nominal impedance
8Ω
POWERED
Power
32W RMS / 128W peak
THD + Noise
<0,15%
Signal Noise Ratio
>95dB
ELECTRICAL
Power supply
Internal. Universal, regulated switch mode with PFC
(Power Factor Correction)
AC mains requirement
100-240 VAC @ 50-60Hz
AC mains connector
3C Euroblock connector for GLOBE PD Series
Power consumption
TBC
MONITORING AND CONTROL
Volume control
via WiSpeak grip app
Tone control
via WiSpeak grip app
Other controls
UNPAIR button
LED Indicators
WiS and STR LEDs
PHYSICAL
Connection type
Euroblock 3C connector for VAC
Installation options
Pendant options
Environmental
IP10
Certifications
FCC, EMC, CB
Enclosure material
ABS reinforced with fiberglass
Mounting system
Steel wire hanging 5 mts for GLOBE PD Series
Operating temperature
Min: 0°C ; 32°F
Max: 35°C ; 95°F
Operating humidity
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 50°C ; 122°F
Storage humidity
<90% HR
External diameter
287 mm / 11.3"
Included accessories
2 x Steel Wire for hanging 5 mts,
2x plastic cable tie, 1 x eurobloc 3C connector
Cable length
5m
Finished colour
White (RAL 9003) or black (RAL 9005)
Dimensions
287x331mm / 11.3"x 13" (ØxD)
Weight
2.2 kg / 4.85 lb
Pieces per box
1
Shipping dimensions
360 x 480 x 360 mm / 14.2 x 18.9 x 14.2 in. (WxHxD)
Shipping weight
3.7 kg / 8.15 lb
